126-202VMV-B01概述

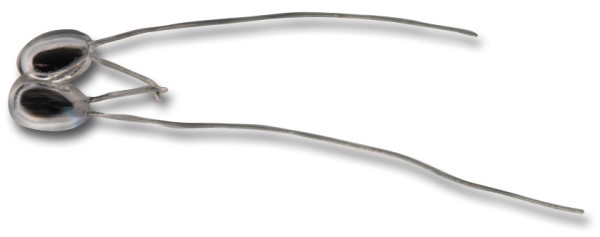

Thermistor 2KΩ 2Pin Radial

Thermistor 2K Ohm 2-Pin Radial

Product Highlights

Interchangeability

Accuracy

High sensitivity

High stability

High reliability

Small size

Cost effective

Potential Applications:

Military

Aerospace

Oceanograpic

Medical

Instrumentation test equipment


得捷:
THERMISTOR NTC 2KOHM 3518K BEAD


艾睿:
Thermistor 2K Ohm 2-Pin Radial


Allied Electronics:
THERMISTOR NTC 2K OHM GLASS RAD


Chip1Stop:
Thermistor 2K Ohm 2-Pin Radial


Verical:
Thermistor 2K Ohm 2-Pin Radial


MASTER:
Thermistor 2K Ohm 2-Pin Radial


Powell:
Sensors, Thermal, Discrete Thermistors


Online Components:
Thermistor 2K Ohm 2-Pin Radial


Electro Sonic:
Thermistor 2K Ohm 2-Pin Radial


126-202VMV-B01中文资料参数规格
技术参数

电阻 2 kΩ

阻值偏差 ±0.5 %

工作温度Max 300 ℃

工作温度Min -60 ℃

精度 125℃ Max

封装参数

安装方式 Through Hole

引脚数 2

封装 Bead, Glass

外形尺寸

封装 Bead, Glass

物理参数

工作温度 -60℃ ~ 300℃

其他

产品生命周期 Active

包装方式 Bulk

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

海关信息

ECCN代码 EAR99

HTS代码 8533408070
