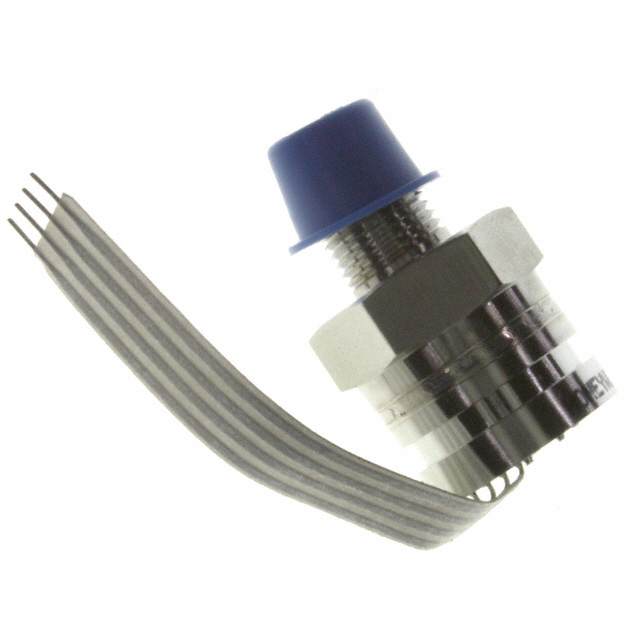

HONEYWELL 19C015PV4K 压力传感器, 0-15PSI, 1/8英寸-27 NPT
"s stainless steel 19C Vacuum Gage Series sensors were developed for pressure applications that involve measurement of hostile media in harsh environments compatible with 316 stainless steel. The special Vacuum Gage Series sensors are specifically designed for applications that can be exposed to vacuum. The 19C Series are calibrated and temperature compensated. They are available for use with either a constant voltage or current source. They feature a variety of pressure connections to allow use in a wide range of OEM Original Equipment Manufacturer equipment. The 19C Series sensors are rugged and reliable transducers for use in a wide variety of pressure sensing applications where corrosive liquids or gases are monitored.
**Features:**
* Up to 500 PSI
* Vacuum, Absolute and Gage Pressure Types
* Rugged, Isolated Stainless Steel Package
* Small Size
* Reliable Semiconductor Technology
* Calibrated and Temperature Compensated
* Vacuum Compatible, Isolated Sensors
**Typical Applications:**
* Industrial Controls
* Process Control Systems
* Industrial Automation and Flow Control
* Pressure Calibrators
电源电压DC 10.0 V
额定电压DC 15.0 V
输出电压 0mV ~ 100mV
工作温度Max 125 ℃
工作温度Min -40 ℃
精度 ±0.25 %
额定电压 15 VDC
电源电压 15 V
安装方式 Panel
引脚数 4
封装 Stainless Steel
长度 21.99 mm
宽度 19.05 mm
高度 30.99 mm
封装 Stainless Steel
工作温度 -40℃ ~ 125℃
产品生命周期 Active
制造应用 板式安装
RoHS标准 RoHS Compliant
含铅标准 Lead Free
HTS代码 9026204000
