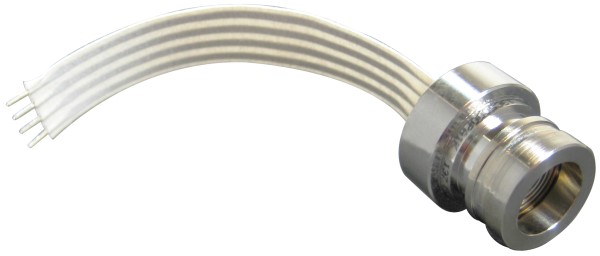

13C0500PA1K图片1
13C0500PA1K图片2
13C0500PA1K图片3
13C0500PA1K图片4
13C0500PA1K图片5
13C0500PA1K图片6
13C0500PA1K概述

成本低,不锈钢,隔离传感器 Low-cost, Stainless Steel, Isolated Sensors

** 13mm Series Stainless Steel Pressure sensors**

These pressure sensors have been designed for use in harsh environments and are ideally suited for measuring hostile media under high pressure. The piezoresistive semiconductor sensor chip design has been proven to be highly reliable, stable and accurate. The sensor chip is in an oil-isolate housing with or without and integral ceramic for temperature compensation and calibration. These sensors feature a weld-ring collar and special back support ring for high cycle life capability as they are designed for further package integration in OEM applications. Potential Applications: Industrial controls Hydraulic controls Tank pressure Pressure transmitters Process control systems

13C0500PA1K中文资料参数规格
技术参数

工作温度Max 125 ℃

工作温度Min -40 ℃

电源电压 15 VDC

封装参数

安装方式 Screw

引脚数 4

外形尺寸

长度 15.67 mm

宽度 15.67 mm

高度 15.3 mm

物理参数

工作温度 -40℃ ~ 125℃

其他

产品生命周期 Active

符合标准

RoHS标准 RoHS Compliant

海关信息

HTS代码 9026204000

数据手册

在线购买13C0500PA1K
型号: 13C0500PA1K
制造商: Honeywell 霍尼韦尔
描述:成本低,不锈钢,隔离传感器 Low-cost, Stainless Steel, Isolated Sensors
