111SM2-T2

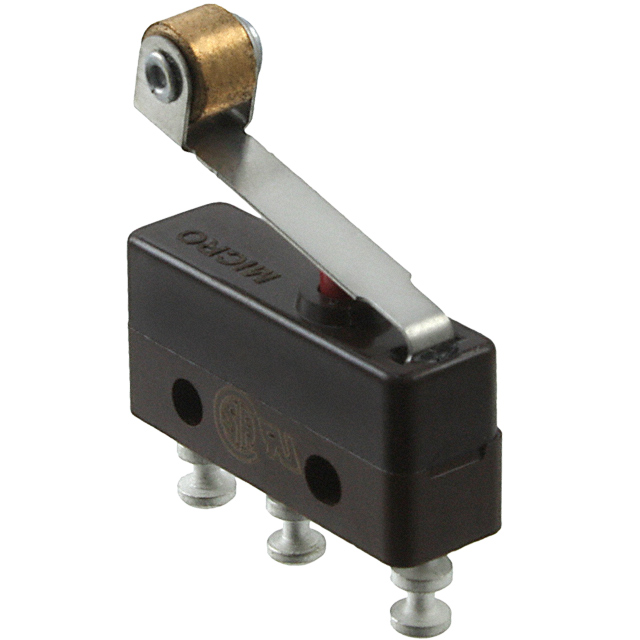

111SM2-T2图片1
111SM2-T2图片2
111SM2-T2图片3
111SM2-T2图片4
111SM2-T2图片5
111SM2-T2图片6
111SM2-T2图片7
111SM2-T2概述

MICRO SWITCH™ Subminiature Basic Switches: SM Series, Single Pole Double Throw SPDT, 5A 250VAC, 1,95 N [7.0 oz] Maximum Operating Force, 3mm [0.12in] Integral Flexible Leaf with Roller Lever Actuator, Double Turret Solder Termination, 9,5mm [0.38in] Mounting Centers, UL, CE, CSA, ENEC

5 A, Subminiature Basic Switches

SM Series subminiature basic switches are used for simple or precision on/off application needs. These switches combine small size and light weight with ample electrical capacity, precision operation and long life.

** Features

**

* Available in Various Voltage and Current Ratings

* Variety of Integral and Auxiliary Actuators

* Elongated Mounting Hole for Easier Mounting

* Cover Securely Cemented to Base

** Specifications**

* Wear-Resistant Phenolic Base and Cover

* Operating Temperature: -65° to +250°F Standard Construction

* UL Recognized, File #E12252

* CSA Certified, File #LR41372

111SM2-T2中文资料参数规格
技术参数

接触器类型 Roller Lever

触点类型 SPDT

触点额定电流 5.00 A

额定电流Max 5 A

封装参数

安装方式 Solder, Chassis

外形尺寸

高度 21.39 mm

其他

产品生命周期 Active

包装方式 Bulk

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

海关信息

ECCN代码 EAR99

HTS代码 8536509055

数据手册

在线购买111SM2-T2
型号: 111SM2-T2
描述:MICRO SWITCH™ Subminiature Basic Switches: SM Series, Single Pole Double Throw SPDT, 5A 250VAC, 1,95 N [7.0 oz] Maximum Operating Force, 3mm [0.12in] Integral Flexible Leaf with Roller Lever Actuator, Double Turret Solder Termination, 9,5mm [0.38in] Mounting Centers, UL, CE, CSA, ENEC
替代型号111SM2-T2
型号/品牌 代替类型 替代型号对比

111SM2-T2

Honeywell 霍尼韦尔

当前型号

当前型号

SS5GL2

欧姆龙

类似代替

111SM2-T2和SS5GL2的区别

SS-01GL2

欧姆龙

功能相似

111SM2-T2和SS-01GL2的区别

SS10GL2

欧姆龙

功能相似

111SM2-T2和SS10GL2的区别
