1PMT5929BT1

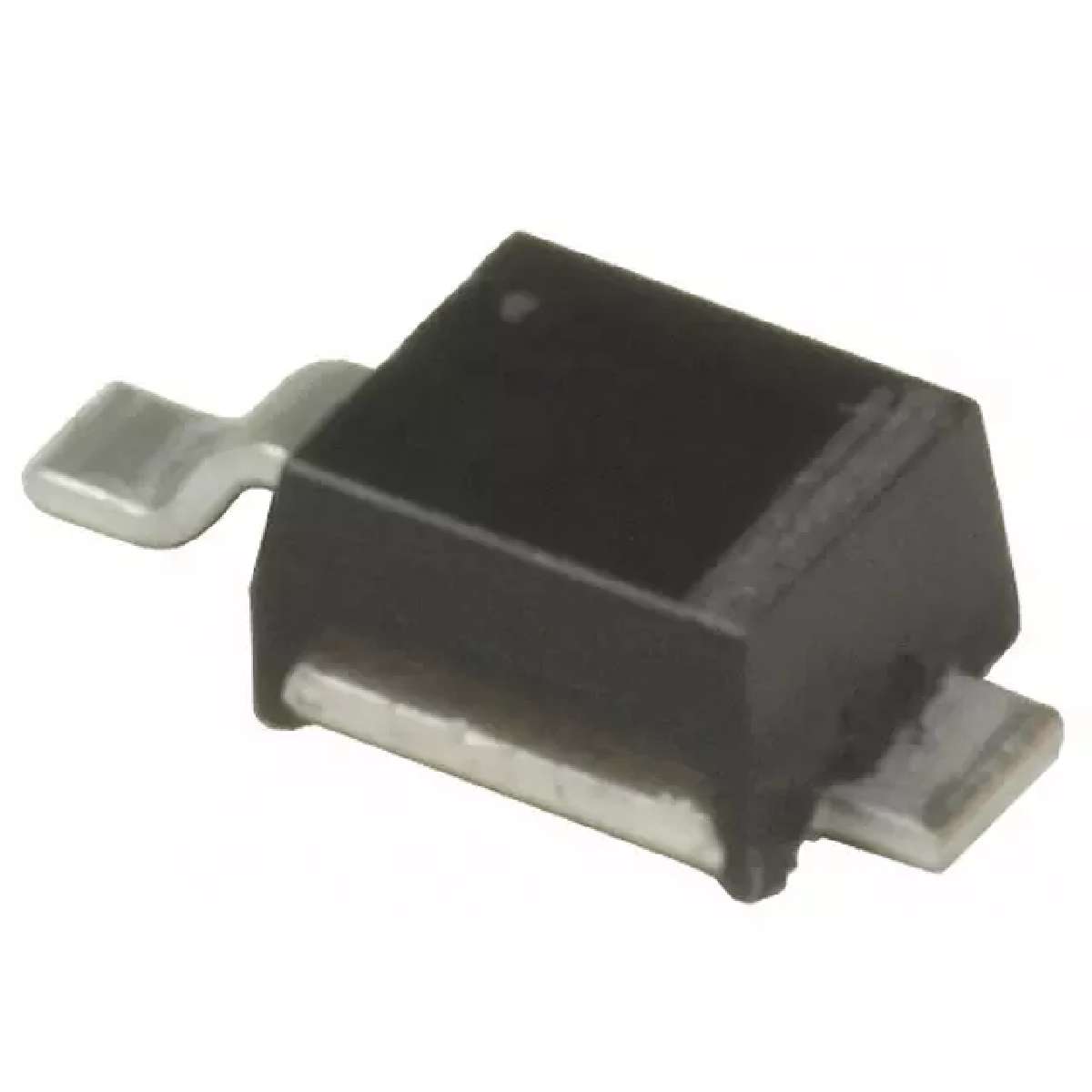

3.2瓦塑料表面贴装封装POWERMITE 3.2 Watt Plastic Surface Mount POWERMITE Package

PLASTIC SURFACE MOUNT 3.2 WATT ZENER DIODES 6.2 − 47 VOLTS

This complete new line of 3.2 Watt Zener Diodes are offered in highly efficient micro miniature, space saving surface mount with its unique heat sink design. The POWERMITE package has the same thermal performance as the SMA while being 50% smaller in footprint area and delivering one of the lowest height profiles 1.1 mm in the industry. Because of its small size, it is ideal for use in cellular phones, portable devices, business machines and many other industrial/consumer applications.

Features

• Zener Breakdown Voltage: 6.2 − 47 V

• DC Power Dissipation: 3.2 W with Tab 1 Cathode @ 75°C

• Low Leakage < 5 A

• ESD Rating of Class 3 > 16 kV per Human Body Model

• Low Profile − Maximum Height of 1.1 mm

• Integral Heat Sink/Locking Tabs

• Full Metallic Bottom Eliminates Flux Entrapment

• Small Footprint − Footprint Area of 8.45 mm2

• Supplied in 12 mm Tape and Reel

T1 = 3,000 Units per Reel

T3 = 12,000 Units per Reel

• Lead Orientation in Tape: Cathode Short Lead to Sprocket Holes

• POWERMITE is JEDEC Registered as DO−216AA

• Cathode Indicated by Polarity Band

• Pb−Free Packages are Available
