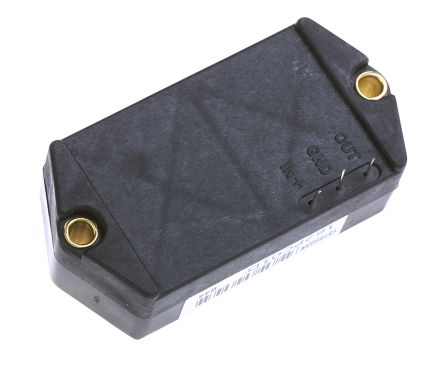

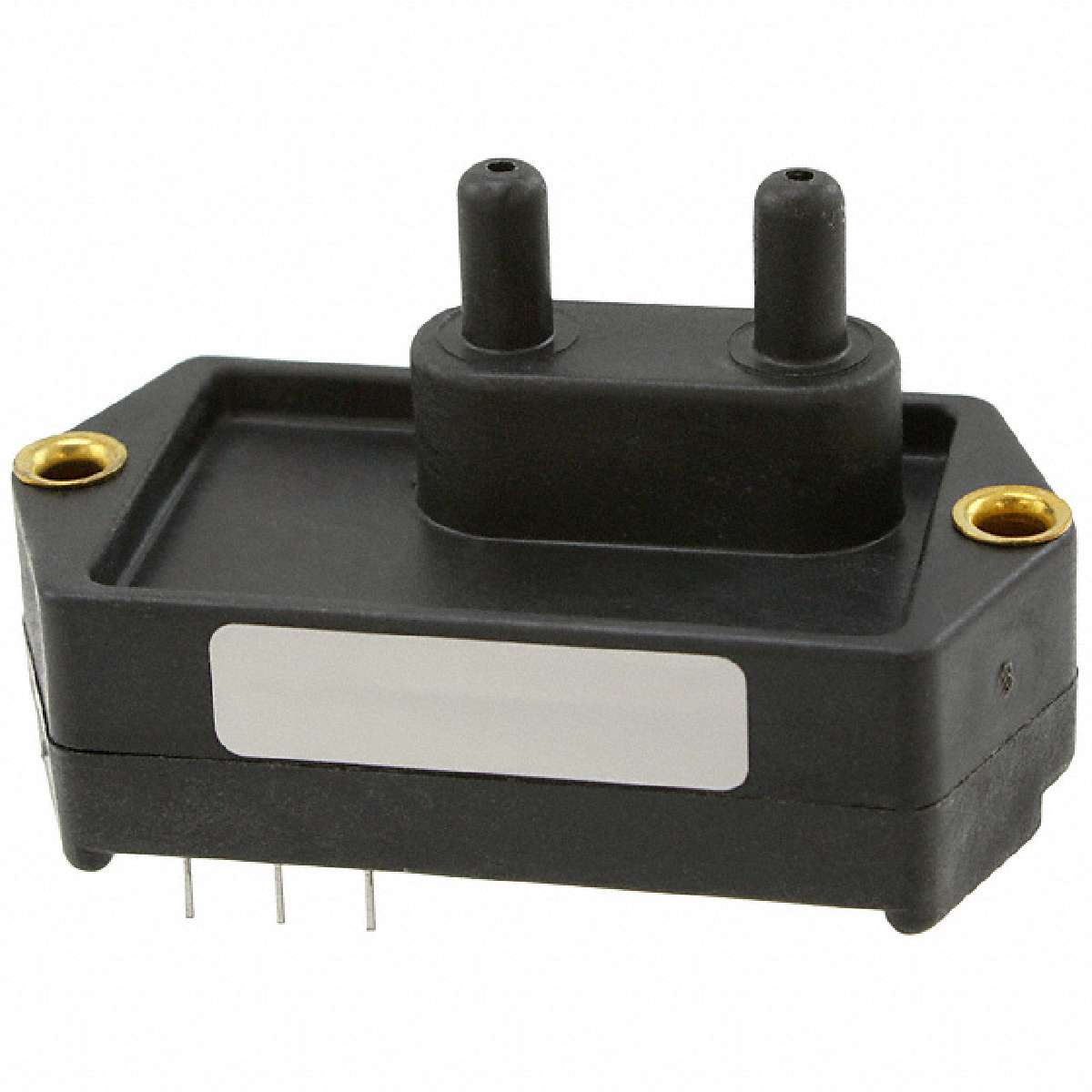

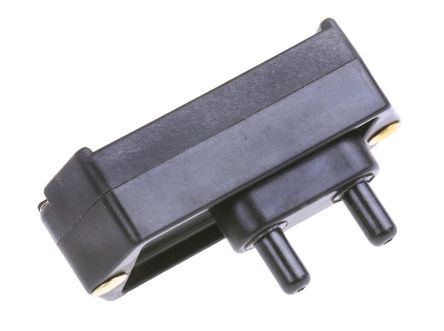

162PC01D

HONEYWELL  162PC01D  压力传感器, 放大, 电压, 27.68 Inch-H2O, 差值, 8 VDC, 直型, 8 mA

超低差压类型

超低压力，放大差分变换器，带硅膜和百分率输出。

高灵敏和低点零飘移

将一个端口通风，可实现量表测量

易于互换

提供说明手册

介质：P1 端口仅限干气；P2 端口浸湿材料，聚酯外壳，环氧粘合剂，硅，硼硅酸盐玻璃和硅玻璃粘合剂

欧时:
Honeywell 1psi 塑料 分差 放大 压力传感器 162PC01D, ±2 %精确度, 5.9 → 6.1 V输出

得捷:
SENSOR 1PSID 0.2" 7V

e络盟:
压力传感器, 放大, 27.68 Inch-H2O, 电压, 差值, 8 VDC, 直型, 8 mA

艾睿:
This 162PC01D board mount pressure sensor from Honeywell is designed to test the specific pressure of a physical medium, usually a type of gas or liquid, as well as any changes in pressure from direct contact. This device&s;s minimum operating supply voltage of 6 V, while its maximum is 16 V. This part has a temperature range of -40 °C to 85 °C. It has a response time of 1Max ms. Its operating pressure range is 0inH2O to 27.68inH2O, while its maximum overload pressure is 5psi.

Allied Electronics:
Sensor; Pressure; Differential Gauge; Amplified; Straight Port Style

Chip1Stop:
Pressure Sensor 0inH2O to 27.68inH2O Differential 3-Pin

MASTER:
Pressure Sensor 0inH2O to 27.68inH2O Differential 3-Pin

Powell:
Sensors, Pressure Transducers, Piezoresistive Silicon

Online Components:
Pressure Sensor 0inH2O to 27.68inH2O Differential 3-Pin

Win Source:
SENSOR PRESS DIFF 27.68" H2O SIP / Pressure Sensor 1PSI 6.89kPa Differential Male - 0.2" 5mm Tube, Dual 1 V ~ 7 V 3-SIP Module
