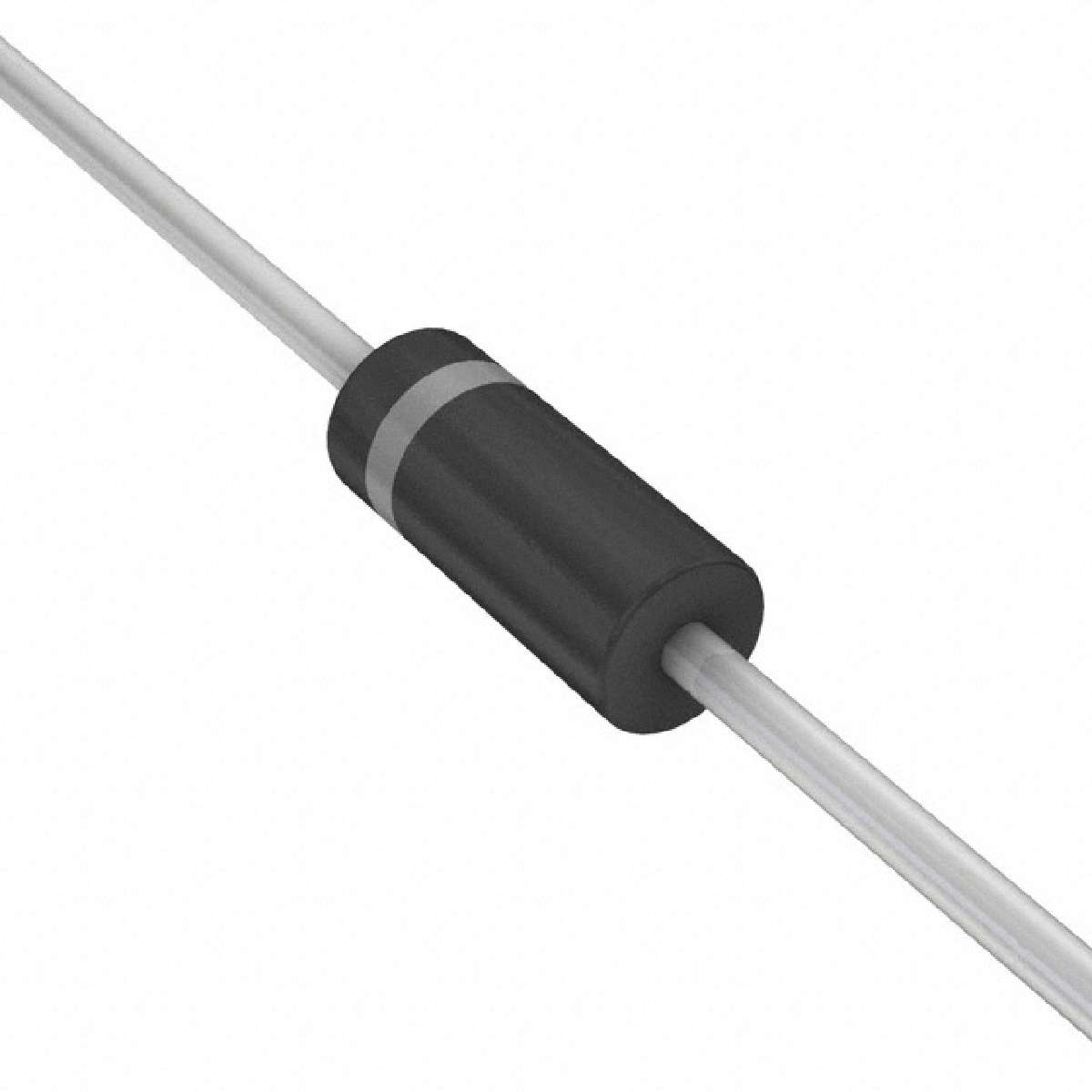

5瓦Surmetic TM 40齐纳稳压器 5 Watt Surmetic TM 40 Zener Voltage Regulators
This is a complete series of 5 Watt Zener diodes with tight limits and better operating characteristics that reflect the superior capabilities of silicon−oxide passivated junctions. All this in an axial lead, transfer−molded plastic package that offers protection in all common environmental conditions.
Features
•Zener Voltage Range −3.3 V to 200 V
•ESD Rating of Class 3 >16 kV per Human Body Model
•Surge Rating of up to 180 W @ 8.3 ms
•Maximum Limits Guaranteed on up to Six Electrical Parameters
•Pb−Free Packages are Available额定电压DC 12.0 V
容差 ±5 %
额定功率 5.00 W
正向电压 1.2V @1A
耗散功率 5 W
测试电流 100 mA
稳压值 12 V
正向电压Max 1.2V @1A
额定功率Max 5 W
工作温度Max 200 ℃
工作温度Min -65 ℃
安装方式 Through Hole
引脚数 2
封装 DO-35-2
长度 8.89 mm
宽度 3.68 mm
高度 3.68 mm
封装 DO-35-2
材质 Plastic
工作温度 -65℃ ~ 200℃
产品生命周期 Unknown
包装方式 Tape & Reel TR
RoHS标准 Non-Compliant
含铅标准 Contains Lead
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
1N5349BRL ON Semiconductor 安森美 | 当前型号 | 当前型号 |
1N5349BG 安森美 | 完全替代 | 1N5349BRL和1N5349BG的区别 |
1N5349BRLG 安森美 | 完全替代 | 1N5349BRL和1N5349BRLG的区别 |
1N5349B 安森美 | 完全替代 | 1N5349BRL和1N5349B的区别 |
