5瓦Surmetic TM 40齐纳稳压器 5 Watt Surmetic TM 40 Zener Voltage Regulators

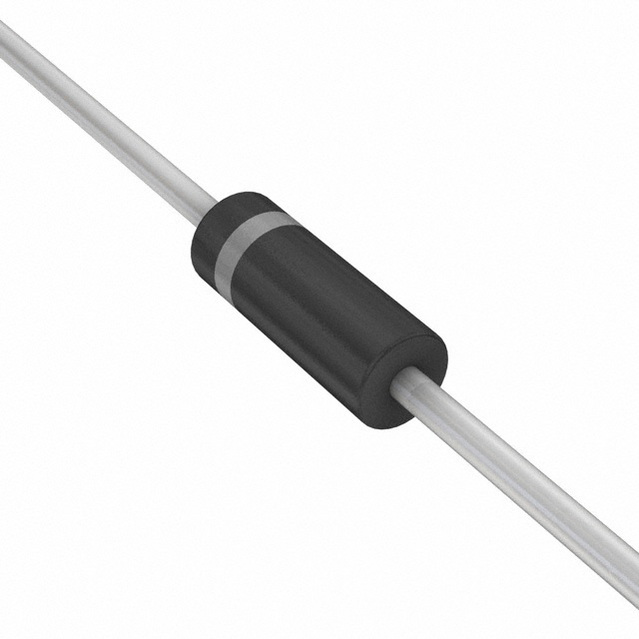

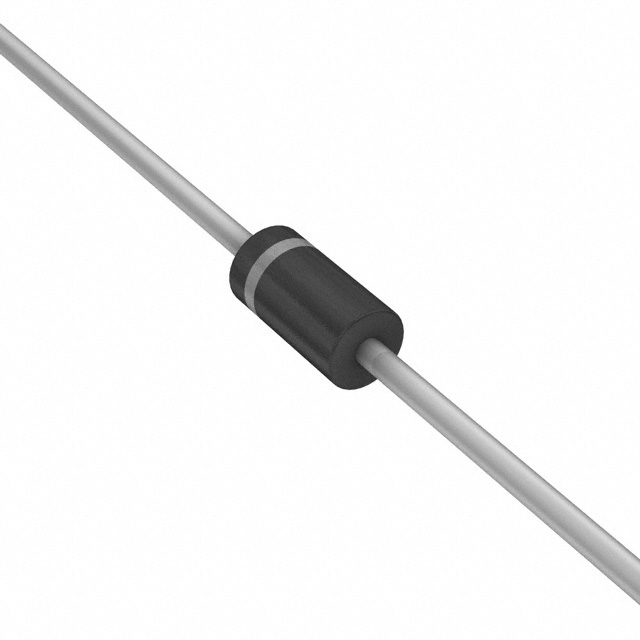

This is a complete series of 5 Watt Zener diodes with tight limits and better operating characteristics that reflect the superior capabilities of silicon−oxide passivated junctions. All this in an axial lead, transfer−molded plastic package that offers protection in all common environmental conditions.
Features
•Zener Voltage Range −3.3 V to 200 V
•ESD Rating of Class 3 >16 kV per Human Body Model
•Surge Rating of up to 180 W @ 8.3 ms
•Maximum Limits Guaranteed on up to Six Electrical Parameters
•Pb−Free Packages are Available- .
额定电压DC 24.0 V
容差 ±5 %
额定功率 5.00 W
正向电压 1.2V @1A
耗散功率 5 W
测试电流 50 mA
稳压值 24 V
正向电压Max 1.2V @1A
额定功率Max 5 W
工作温度Max 200 ℃
工作温度Min -65 ℃
安装方式 Through Hole
引脚数 2
封装 DO-35-2
长度 8.89 mm
宽度 3.68 mm
高度 3.68 mm
封装 DO-35-2
材质 Plastic
工作温度 -65℃ ~ 200℃
产品生命周期 Unknown
包装方式 Cut Tape CT
RoHS标准 Non-Compliant
含铅标准 Contains Lead
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
1N5359BRL ON Semiconductor 安森美 | 当前型号 | 当前型号 |
1N5359BRLG 安森美 | 完全替代 | 1N5359BRL和1N5359BRLG的区别 |
1N5359B 安森美 | 完全替代 | 1N5359BRL和1N5359B的区别 |
1N5359BG 安森美 | 类似代替 | 1N5359BRL和1N5359BG的区别 |
