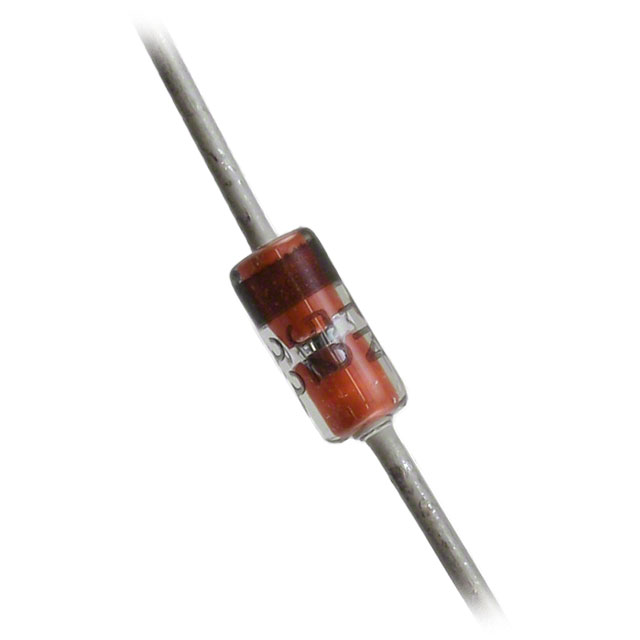

1N5259B

Diode Zener Single 39V 5% 0.5W1/2W 2Pin DO-35

General Data Applicable to all series in this group.

Features

---

 |

.

Complete Voltage Range - 1.8 to 200 Volts

.

DO-204AH Package - Smaller than Conventional DO-204AA Package

.

Double Slug Type Construction

.

Metallurgically Bonded Construction

Mechanical Characteristics:

.

CASE: Double slug type, hermetically sealed glass

.

MAXIMUM LEAD TEMPERATURE FOR SOLDERING PURPOSES: 230?C, 1/16", from case for 10 seconds

.

FINISH: All external surfaces are corrosion resistant with readily solderable leads

.

POLARITY: Cathode indicated by color band. When operated in zener mode, cathode will be positive with respect to anode

.

MOUNTING POSITION: Any

.

WAFER FAB LOCATION: Phoenix, Arizona

.

ASSEMBLY/TEST LOCATION: Seoul, Korea
