1870300000

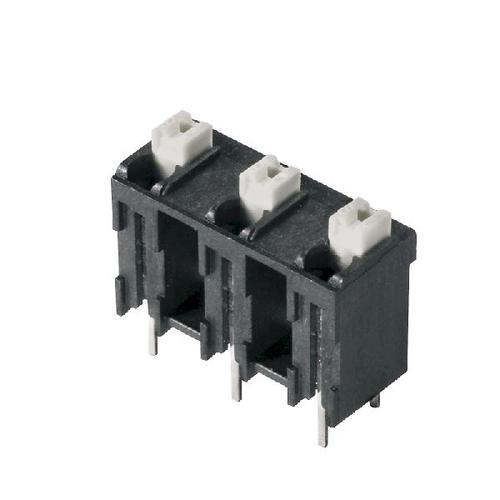

1870300000图片1
1870300000概述

Conn Spring Cage 4POS 7.5mm Solder ST Thru-Hole 10A Tube

4 Position Wire to Board Terminal Block Vertical with Board 0.295" 7.50mm Through Hole


得捷:
TERM BLK 4P TOP ENTRY 7.5MM PCB


安富利:
Conn Spring Cage 4 POS 7.5mm Solder ST Thru-Hole 10A Tube


1870300000中文资料参数规格
技术参数

线规 16AWG ~ 24AWG

易燃性等级 UL 94 V-0

封装参数

安装方式 Through Hole

物理参数

外壳颜色 Black

颜色 Black

触点材质 Copper Alloy

工作温度 -50℃ ~ 240℃

其他

产品生命周期 Active

包装方式 Tube

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

数据手册

1870300000引脚图与封装图

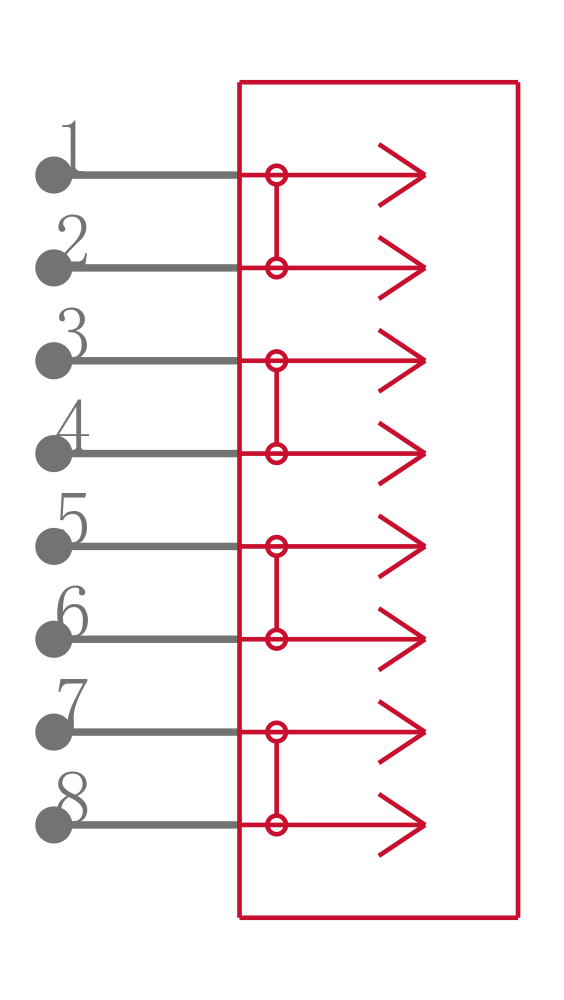

1870300000引脚图

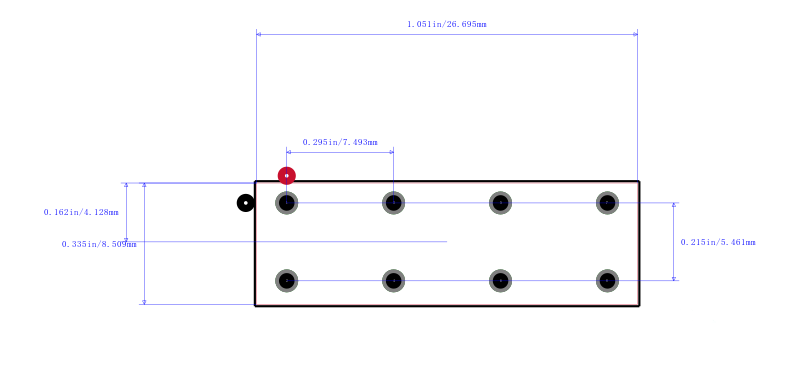

1870300000封装图

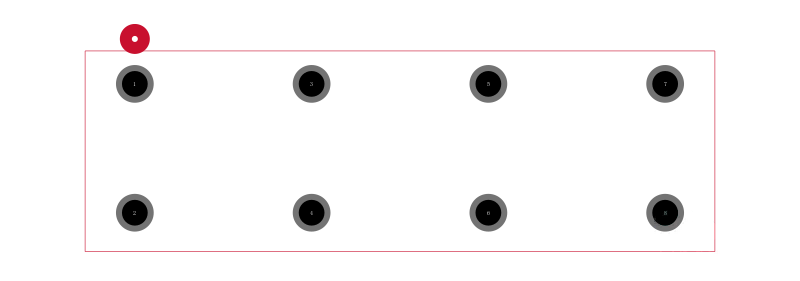

1870300000封装焊盘图
