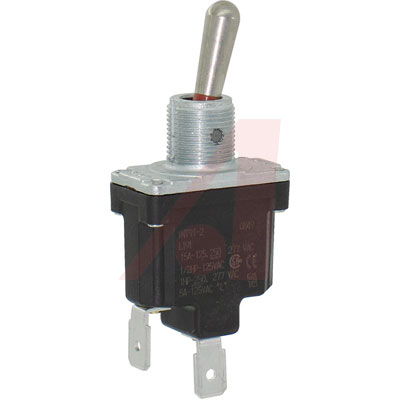

1NT91-2图片8
1NT91-2图片9

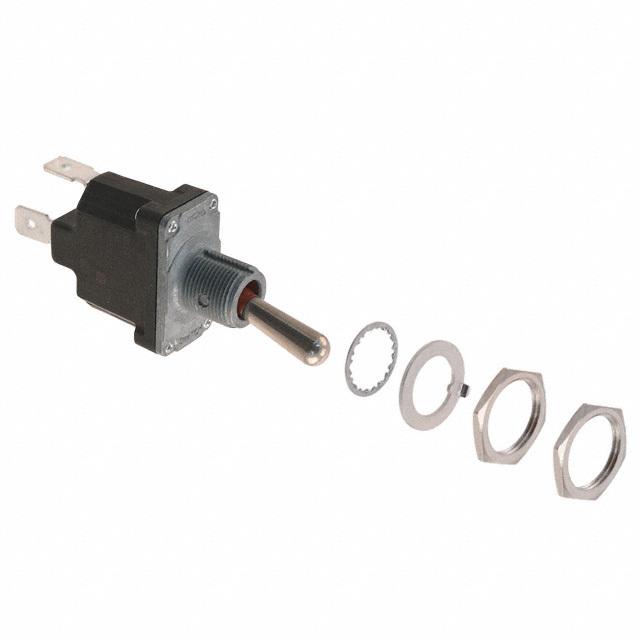

1NT91-2图片10
1NT91-2图片11
1NT91-2概述

HONEYWELL  1NT91-2  SWITCH, TOGGLE, SPST, 20A, 277V 新

"s NT Series toggle switches simplify installation and enhance panel appearance while providing a broad range of options for circuitry, sealing, size and style. These rugged, cost-effective switches were originally designed to eliminate the need for behind-panel hardware, to provide uniform panel height, and to provide a unique, universal cover seal, all while providing reliable performance.

NT Series toggle switches from Honeywell feature:

* A raised panel stand-off option for consistent panel height

* An Easy-Start bushing to ensure proper alignment

* A panel-to-cover O-ring seal for increased protection

* Quality at a competitive price

1NT91-2中文资料参数规格
技术参数

额定电压AC 125 V

额定电流 15 A

触点类型 SPST

额定电流Max 20A @28VDC

工作温度Max 71 ℃

工作温度Min -40 ℃

额定电压DC Max 250 V

额定电压AC Max 277 V

封装参数

安装方式 Panel

外形尺寸

长度 28.6 mm

宽度 15.7 mm

高度 58.7 mm

物理参数

触点材质 Silver Alloy

工作温度 -40℃ ~ 71℃

其他

产品生命周期 Active

包装方式 Bulk

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

海关信息

ECCN代码 EAR99

HTS代码 8536509065

数据手册
