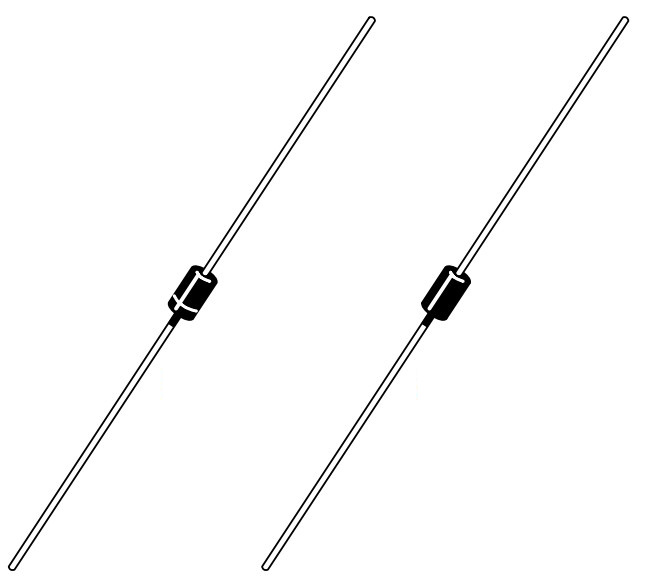

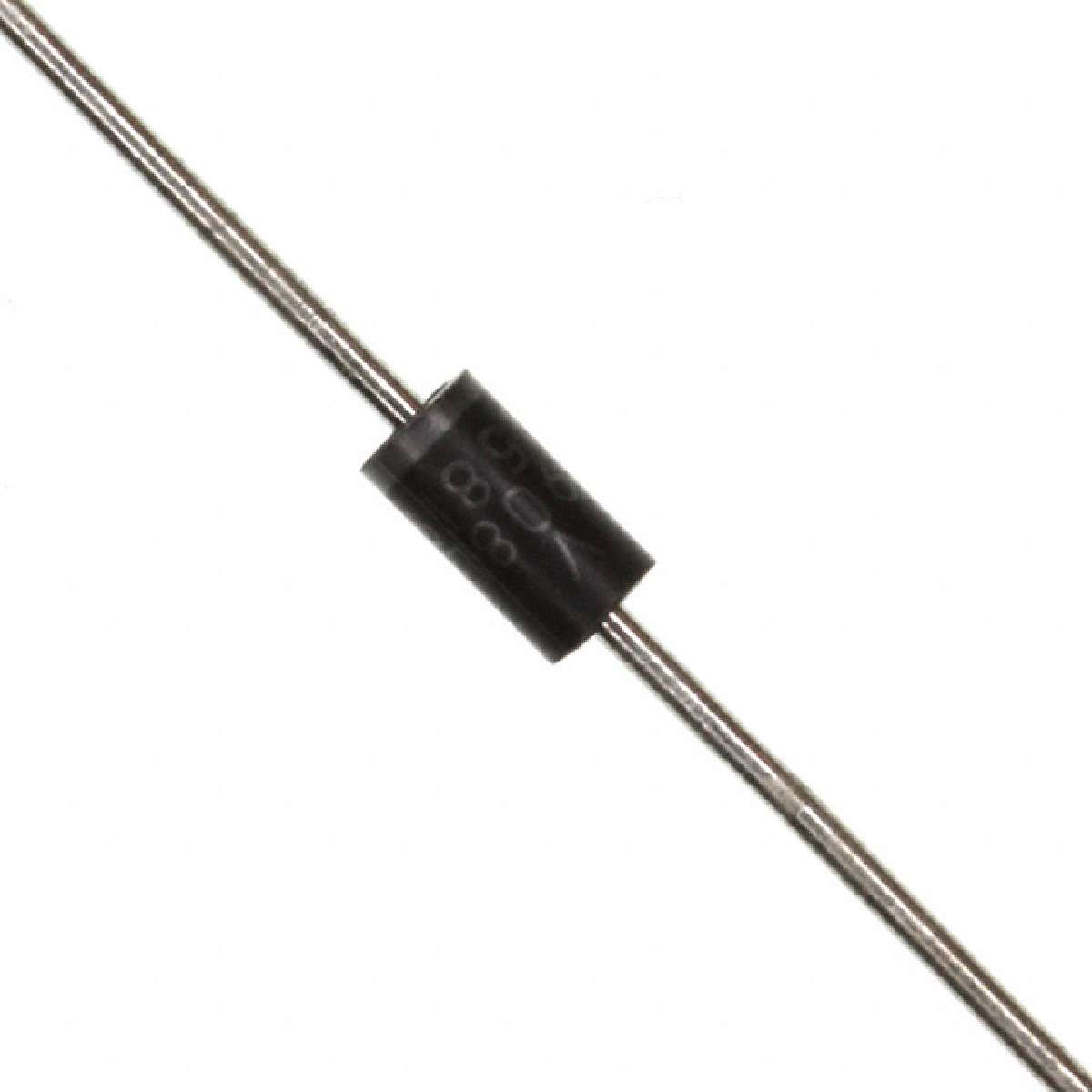

1N5817RL

轴向引线整流器 Axial Lead Rectifiers

The Schottky Rectifier employs the Schottky Barrier principle in a large area metal-to-silicon power diode. The Schottky Rectifier¿s state-of-the-art geometry features chrome barrier metal, epitaxial construction with oxide passivation and metal overlap contact. It is ideally suited for use as rectifiers in low-voltage, high-frequency inverters, free wheeling diodes and polarity protection diodes.

Features

---

 |

.

Extremely Low vF

.

Low Stored Charge, Majority Carrier Conduction

.

Low Power Loss/High Efficiency Mechanical Characteristics

Mechanical Characteristics:

.

Case: Epoxy, Molded

.

Weight: 0.4 gram approximately

.

Finish: All External Surfaces Corrosion Resistant and Terminal Leads are Readily Solderable

.

Shipped in plastic bags, 1000 per bag.

.

Available Tape and Reeled, 5000 per reel, by adding a "RL" suffix to the part number

.

Polarity: Cathode Indicated by Polarity Band

.

Marking: 1N5817, 1N5818, 1N5819

.

Lead Temperature for Soldering Purposes: 260°C Max for 10 seconds

.

These are Pb-Free Devices
