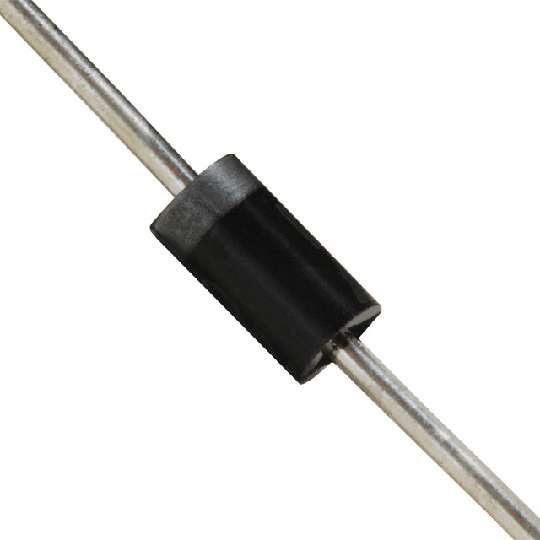

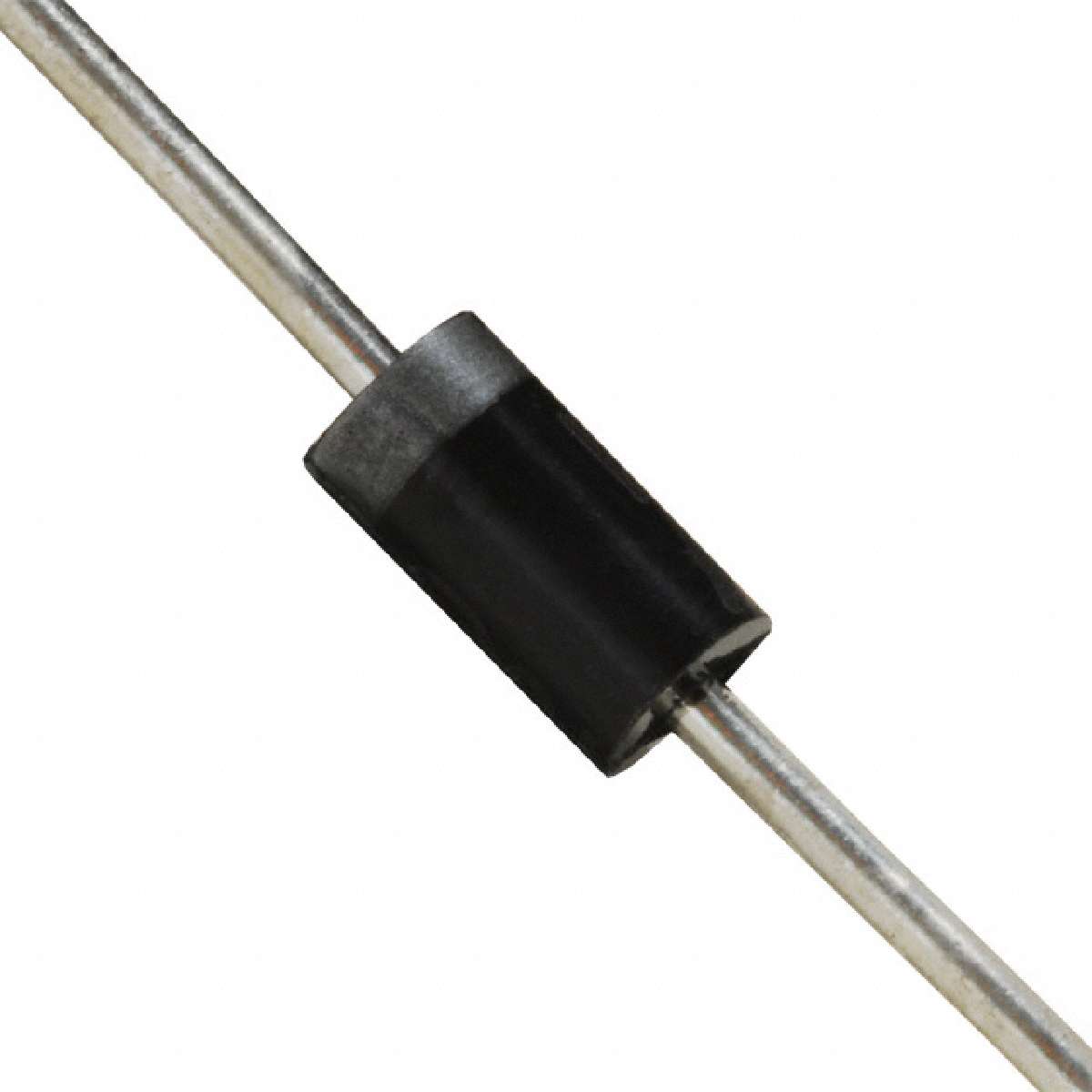

1.0安培玻璃钝化整流器 1.0 Ampere Glass Passivated Rectifiers
General Purpose Rectifiers Glass Passivated
Features
• Low forward voltage drop.
• High surge current capability.
• High reliability.
• High current capability.
贸泽:
Rectifiers 1.0a Rectifier General Purpose
艾睿:
Diode Switching 1KV 1A 2-Pin DO-41 T/R
Chip1Stop:
Diode Switching 1KV 1A 2-Pin DO-41 T/R
罗切斯特:
Diode Switching 1KV 1A 2-Pin DO-41 T/R
额定电压DC 1.00 kV
额定电流 1.00 A
电容 8.00 pF
输出电流 ≤1.00 A
正向电压 1.1V @1A
极性 Standard
耗散功率 3 W
热阻 50℃/W RθJA
正向电流 1 A
正向电压Max 1.1V @1A
工作温度Max 175 ℃
工作温度Min 65 ℃
安装方式 Through Hole
引脚数 2
封装 DO-41
长度 5.21 mm
宽度 2.72 mm
高度 2.72 mm
封装 DO-41
产品生命周期 Unknown
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
1N4007GP Fairchild 飞兆/仙童 | 当前型号 | 当前型号 |
1N4007GP-E3/54 威世 | 功能相似 | 1N4007GP和1N4007GP-E3/54的区别 |
1N4007GP-TP 美微科 | 功能相似 | 1N4007GP和1N4007GP-TP的区别 |
1N4007GPHE3/73 威世 | 功能相似 | 1N4007GP和1N4007GPHE3/73的区别 |
