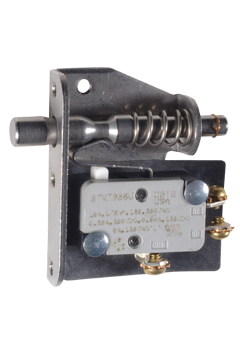

Switch Safety Interlock N.O./N.C. SPDT Plunger 15A 250VAC 250VDC 372.85VA Quick Connect Screw Mount
Door Interlock Switch
立创商城:
12TL402
贸泽:
Basic / Snap Action Switches SPDT 15A SCREW TERM.
艾睿:
Switch Safety Interlock N.O./N.C. SPDT Plunger 15A 250VAC 250VDC 372.85VA Quick Connect Screw Mount
Allied Electronics:
Switch Safety Interlock N.O./N.C. SPDT Plunger 15A
Verical:
Switch Safety Interlock N.O./N.C. SPDT Plunger 15A 250VAC 250VDC 372.85VA Screw Mount Quick Connect
Newark:
# C & K COMPONENTS 12TL402 INTERLOCK SWITCH
MASTER:
Door Interlock Switch
Electro Sonic:
Door Interlock Switch
额定电压DC 125 V
接触器类型 Button
额定电压AC 125 V
额定电流 15A AC, 500mA DC
触点类型 SPDT
额定电流Max 15A @250VAC
额定功率Max 372.85 VA
工作温度Max 150 ℃
工作温度Min -55 ℃
额定电压DC Max 250 V
额定电压AC Max 250 V
安装方式 Quick Connect
封装 -
高度 46 mm
封装 -
触点材质 Fine Silver
工作温度 -55℃ ~ 150℃
产品生命周期 Not Recommended for New Design
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
HTS代码 8536509065
