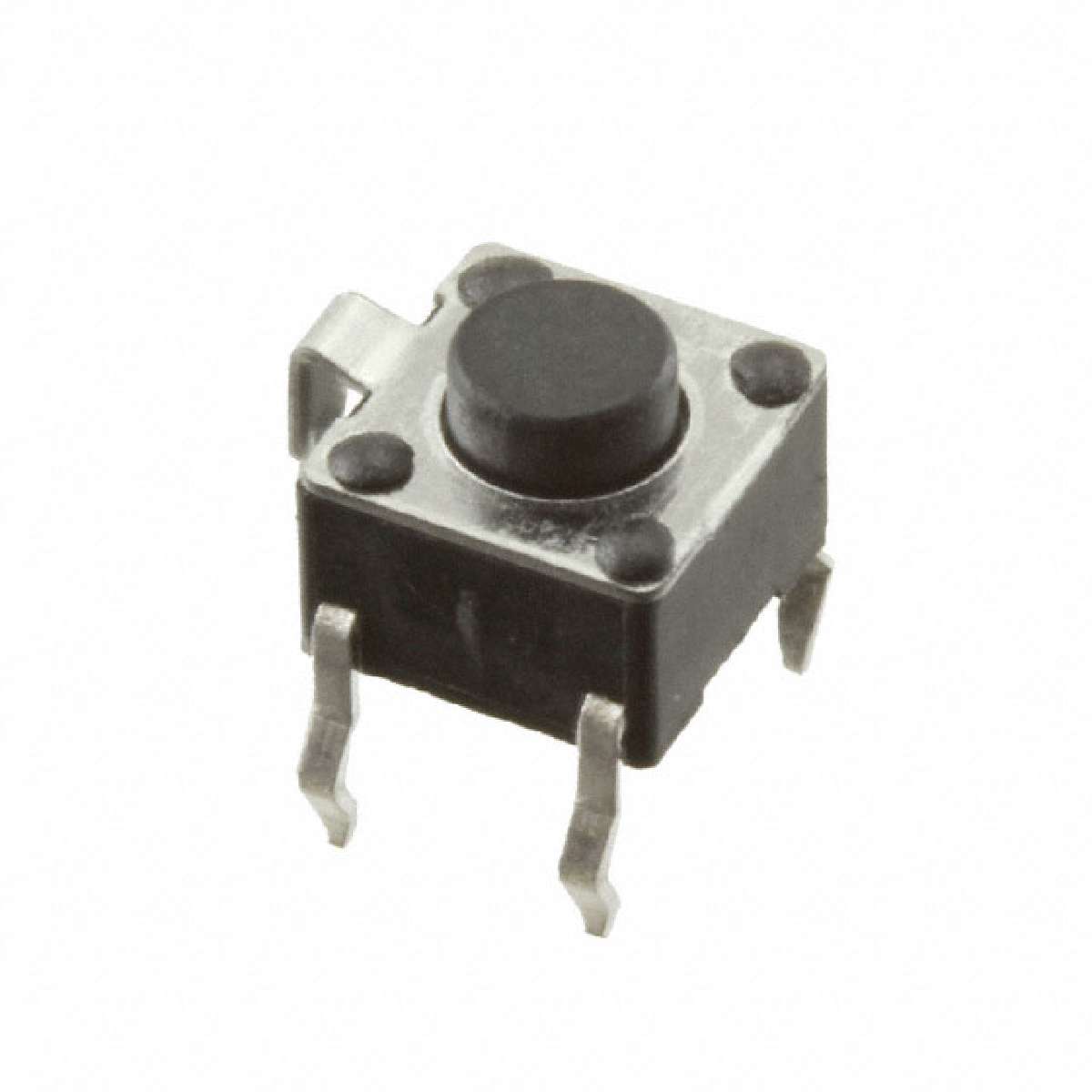

Switch Tactile OFF ON SPST Round Button PC Pins 0.05A 24VDC 100000Cycles 1.57N Thru-Hole Loose
FSM3JH=6MM TACT SWITCH, HT W/ESD
贸泽:
Tactile Switches FSM3JH=6MM TACT SWITCH, HT W/ESD
艾睿:
Switch Tactile OFF ON SPST Round Button PC Pins 0.05A 24VDC 100000Cycles 1.57N Thru-Hole Loose Piece
安富利:
Switch Tactile OFF ON SPST Round Button PC Pins 0.05A 24VDC 100000Cycle 1.57N Thru-Hole Loose Piece
MASTER:
6MM TACT SWITCH THRU-HOLE W/ESD
Powell:
Tactile Switches
Online Components:
FSM3JH=6MM TACT SWITCH, HT W/ESD
Electro Sonic:
FSM3JH=6MM TACT SWITCH, HT W/ESD
触点电镀 Silver
额定电流Max 0.05A @24VDC
工作温度Max 85 ℃
工作温度Min -35 ℃
额定电压DC Max 24 V
接触电阻Max 100 mΩ
安装方式 Through Hole
封装 Polyamide
高度 5 mm
封装 Polyamide
触点材质 Copper Alloy
工作温度 -35℃ ~ 85℃
产品生命周期 Active
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ELV标准 Compliant
ECCN代码 EAR99
HTS代码 8536509065
