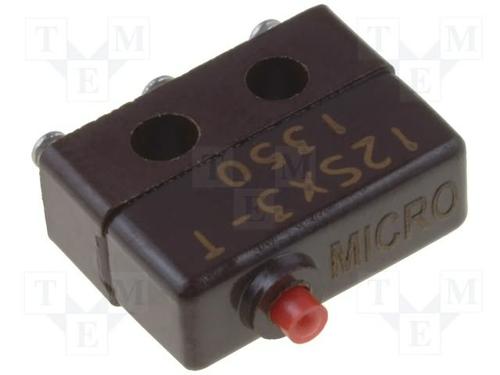

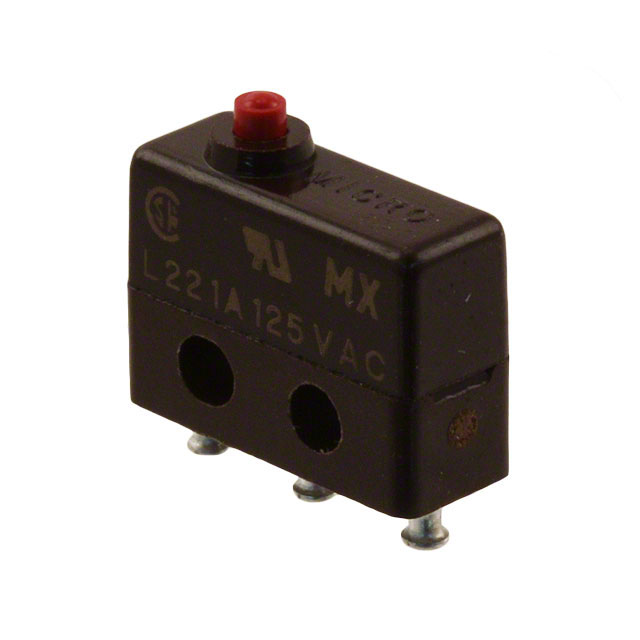

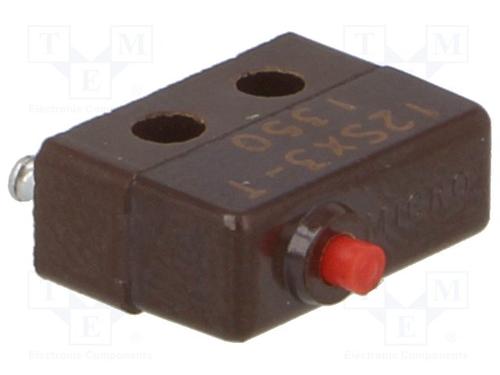

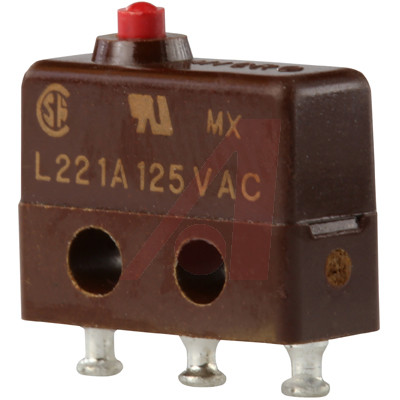

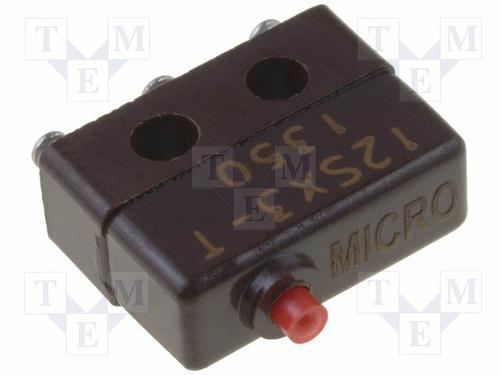

HONEYWELL 12SX3-T 微动开关, SX系列, SPDT, 焊接, 1 A, 125 VAC, 28 VDC
The SX series MICRO SWITCH™ subminiature Basic Switch for simple or precision on/off application needs. It is small, precision Snap-action Switches that are ideal where savings in space and weight are important. It is used in appliances, timing devices, office equipment, valves, vending machines and manually operated devices.
- .
- Long operating life
- .
- Elongated mounting hole for easier, more accurate mounting
- .
- Choice of actuation plunger, integral and auxiliary actuators
- .
- Choice of electrical termination solder, quick connect, PCB
- .
- UL/CSA, cUL, ENEC and CE Approvals
- .
- -54 to 121°C Operating temperature range
额定电压DC 28 V
接触器类型 Pin Plunger
额定电压AC 125 V
额定电流 1A AC, 1A DC
触点类型 SPDT
工作温度Max 121 ℃
工作温度Min -54 ℃
安装方式 Quick Connect
封装 125
高度 13.21 mm
封装 125
触点材质 Gold
产品生命周期 Active
包装方式 Bulk
制造应用 Test & Measurement, 计算机和计算机周边, HVAC, 国防, Medical, 军用与航空, 通信与网络, 传感与仪器, Communications & Networking, Computers & Computer Peripherals, 医用, Aerospace, Defence, Military, 测试与测量, Sensing & Instrumentation
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
军工级 Yes
REACH SVHC版本 2014/06/16
ECCN代码 EAR99
HTS代码 8536509055
