12TW1-12

Switch Toggle ON ON ON SP3T Round Lever Solder 5A 125VAC 28VDC Panel Mount with Threads

Miniature Toggle Switches Miniature toggle switches qualified to MIL-S-83731.

SPDT and DPDT Circuitry

All Switches Come with a Lockwasher, a Keying Washer and 2 Hex Nuts

Choice of 1/4" or 15/32" Bushings

Sealed Bushing Versions

Save Space and Weight

Specifications

UL Recognized

Operating Temperature: -85° to +160°F

艾睿:

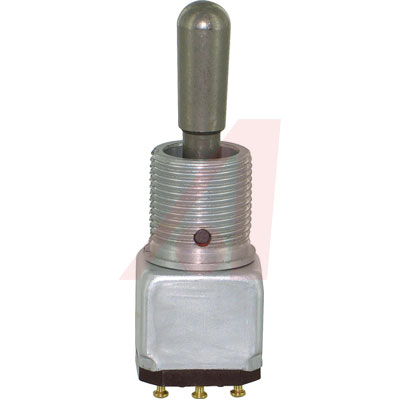

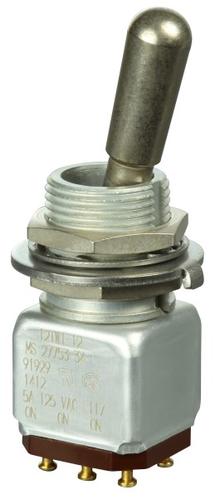

This compact 12TW1-12 toggle switch from Honeywell makes it possible to turn on and off certain parts of your circuits. It has a SP3T configuration. This device has a maximum current rating of 5 A @ 125VAC. This toggle switch has an operating temperature range of -65 °C to 71 °C. The 12TW1-12 toggle switch has a solder termination style. This product is 14.61 mm long, 48.01 mm tall and 13.59 mm deep. The maximum AC voltage rating is 125 VAC and the maximum DC voltage rating is 28 VDC.

Allied Electronics:
Toggle Switch, 2 Pole, 3 Position, Solder Terminals, Standard Lever

Chip1Stop:
Switch Toggle ON ON ON DPDT Round Lever Solder 5A 125VAC 28VDC Panel Mount with Threads

Verical:
Switch Toggle ON ON ON SP3T Round Lever Solder 5A 125VAC 28VDC Panel Mount with Threads

MASTER:
MICRO SWITCH™ Miniature Toggle Switches: TW Series, Double Pole Double Throw DPDT 3 Position, Special Circuitry On - On - On, Solder Terminals, 15/32 Inch Bushing, Standard Lever, Military Part Number MS27753-34

Online Components:
MICRO SWITCH™ Toggle Switches: TL Series, Double Pole Double Throw DPDT 2 Position On - On, Solder Turret Terminals, Locking ...

Electro Sonic:
MICRO SWITCH™ Miniature Toggle Switches: TW Series, Double Pole Double Throw DPDT 3 Position, Special Circuitry On - On - ...
