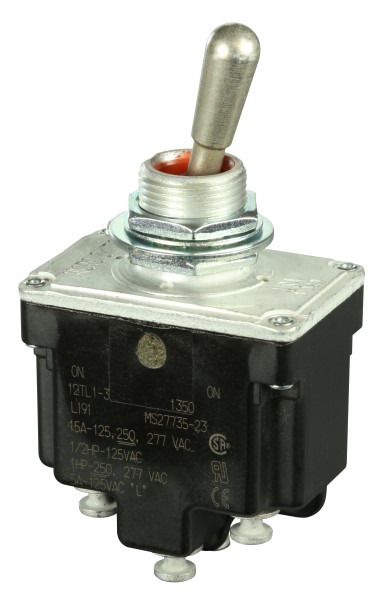

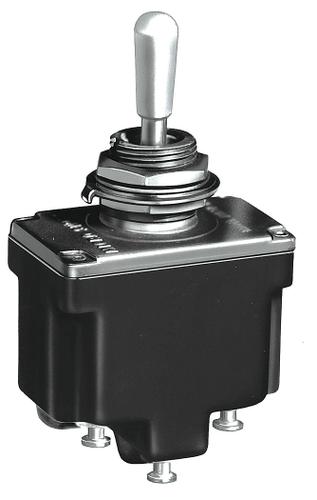

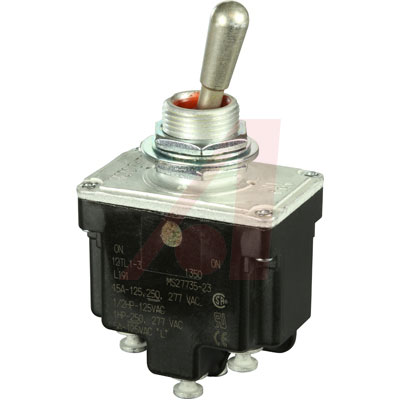

12TL1-3

12TL1-3图片1
12TL1-3图片2
12TL1-3图片3
12TL1-3图片4
12TL1-3图片5
12TL1-3图片6
12TL1-3图片7
12TL1-3概述

MICRO SWITCH™ Miniature Toggle Switches: TW Series, Single Pole Double Throw SPDT 3Position On - Off - On, Solder Terminals, 15/32Inch Bushing, 22mm Square Matte Finish White Nylon Tab Lever

MICRO SWITCH™ Miniature Toggle Switches: TW Series, Single Pole Double Throw SPDT 3 Position On - Off - On, Solder Terminals, 15/32 Inch Bushing, 22 mm Square Matte Finish White Nylon Tab Lever

Product Highlights

Qualified to MIL-S-3950

Environment-proof sealing

1,2, and 4 pole circuitry

Standard and pull-to-unlock levers

2 and 3 position, maintained and momentary toggle action

Temperature range: -85 F to +160 F

Completely sealed switching chamber

Step-design case provides added space between terminals to help prevent shorting

UL recognized, CSA certified

CE approved

Potential Applications:

Industrial machinery and equipment

Military and commercial aviation

Construction equipment

Test instruments

Agricultural machinery

Process control

Medical instrumentation

12TL1-3中文资料参数规格
技术参数

触点类型 DPDT

额定电流Max 20A @28VDC

工作温度Max 72 ℃

工作温度Min -65 ℃

额定电压DC Max 250 V

额定电压AC Max 277 V

外形尺寸

长度 34.04 mm

宽度 23.11 mm

高度 75.95 mm

物理参数

触点材质 Silver Cadmium Oxide

工作温度 -65℃ ~ 72℃

其他

产品生命周期 Active

包装方式 Bulk

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

军工级 Yes

海关信息

ECCN代码 EAR99

HTS代码 8536509040

数据手册

在线购买12TL1-3
型号: 12TL1-3
描述:MICRO SWITCH™ Miniature Toggle Switches: TW Series, Single Pole Double Throw SPDT 3Position On - Off - On, Solder Terminals, 15/32Inch Bushing, 22mm Square Matte Finish White Nylon Tab Lever
