Switch Tactile OFF ON SPST Round Button J-Lead 0.05A 24VDC 0.98N SMD T/R
顶部触动 触摸 SPST-NO 表面贴装型
艾睿:

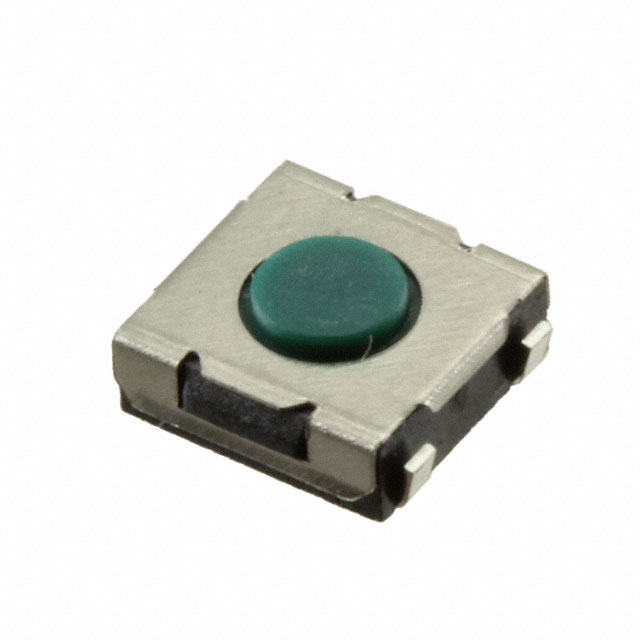

This 1571625-4 tactile switch from TE Connectivity will turn your system on and off when there is a change in pressure. It has a SPST configuration. This device has a maximum current rating of 0.05 A @ 24VDC. This tactile switch has a minimum operating temperature of -20 °C and a maximum of 85 °C. The 1571625-4 tactile switch has a j-lead termination style. The maximum DC voltage rating is 24 VDC. This round button actuator is 0.5 mm long. This product is 6.2 mm long, 2.5 mm tall and 6.8 mm deep.
安富利:
Switch Tactile OFF ON SPST Round Button J-Lead 0.05A 12VDC 0.98N SMD T/R
Chip1Stop:
Switch Tactile OFF ON SPST Round Button J-Lead 0.05A 12VDC 0.98N SMD T/R
Verical:
Switch Tactile OFF ON SPST Round Button J-Lead 0.05A 24VDC 0.98N SMD T/R
Powell:
Pushbutton Switches
Electro Sonic:
TACT,6X6,SMT,J-LEAD,100GF,T&R
触点电镀 Silver
额定电压DC 24 V
触点类型 SPST
额定电流Max 0.05A @24VDC
工作温度Max 85 ℃
工作温度Min -20 ℃
额定电压DC Max 24 V
接触电阻Max 100 mΩ
安装方式 Surface Mount
封装 Thermoplastic LCP
长度 6.2 mm
宽度 6.8 mm
高度 2.5 mm
封装 Thermoplastic LCP
触点材质 Stainless Steel
工作温度 -35℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ELV标准 Compliant
ECCN代码 EAR99
