拨动开关 DPDT 3 POSITION SOLDER TERMINATION
Miniature Toggle Switches Miniature toggle switches qualified to MIL-S-83731.
SPDT and DPDT Circuitry

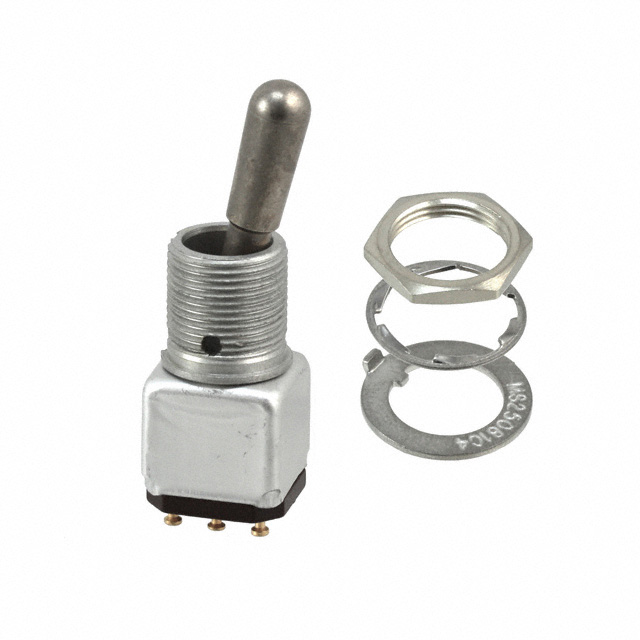

All Switches Come with a Lockwasher, a Keying Washer and 2 Hex Nuts
Choice of 1/4" or 15/32" Bushings
Sealed Bushing Versions
Save Space and Weight
Specifications
UL Recognized
Operating Temperature: -85° to +160°F
贸泽:
拨动开关 DPDT 3 POSITION SOLDER TERMINATION
艾睿:

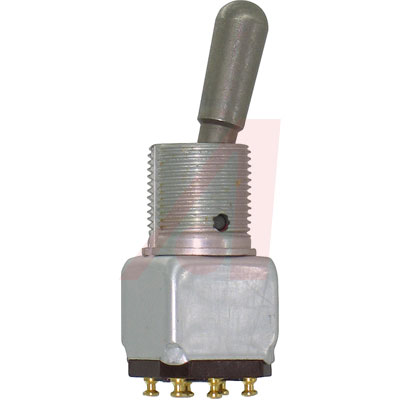

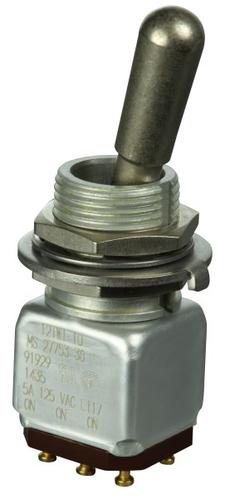

The 12TW1-10 toggle switch from Honeywell is a simple way to power on and off various components of your application. It has a SP3T configuration. This device has a maximum current rating of 5. This toggle switch has an operating temperature range of -65 °C to 71 °C. The 12TW1-10 toggle switch has a solder termination style. This product is 14.7 mm long, 48 mm tall and 13.7 mm deep. The maximum AC voltage rating is 125 VAC and the maximum DC voltage rating is 30 VDC.
Allied Electronics:
Toggle Switch, 2 Pole, 3 Position, Solder Terminals, Standard Lever, 10 Amps
Chip1Stop:
Switch Toggle ON ON ON DPDT Round Lever Solder 5A 125VAC 30VDC Panel Mount with Threads
Verical:
Switch Toggle ON ON ON SP3T Round Lever Solder 5A 125VAC 30VDC Panel Mount with Threads
Newark:
# HONEYWELL 12TW1-10 Toggle Switch, DPDT, Non Illuminated, On-On-On, Panel, 5 A
MASTER:
MICRO SWITCH™ Miniature Toggle Switches: TW Series, Double Pole Double Throw DPDT 3 Position, Special Circuitry On - On - On, Solder Terminals, 15/32 Inch Bushing, Standard Lever, Military Part Number MS27753-38
Online Components:
MICRO SWITCH™ Toggle Switches: TL Series, Double Pole Single Throw DPST 2 Position Off - On, Solder Turret Terminals, Locking ...
Electro Sonic:
MICRO SWITCH™ Miniature Toggle Switches: TW Series, Double Pole Double Throw DPDT 3 Position, Special Circuitry On - On - ...
