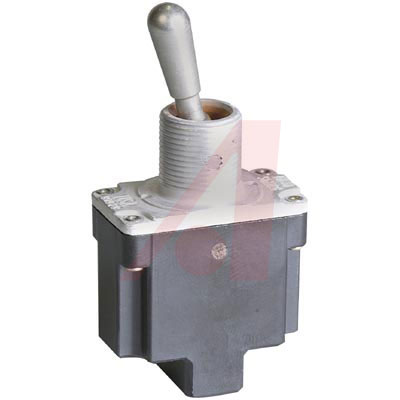

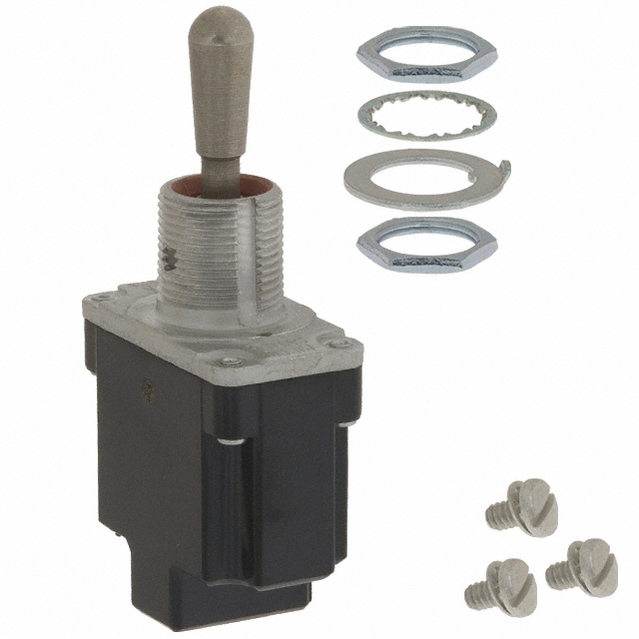

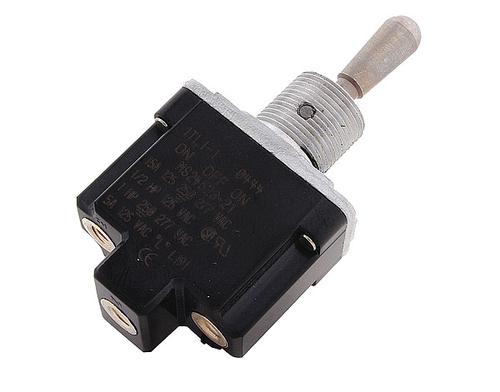

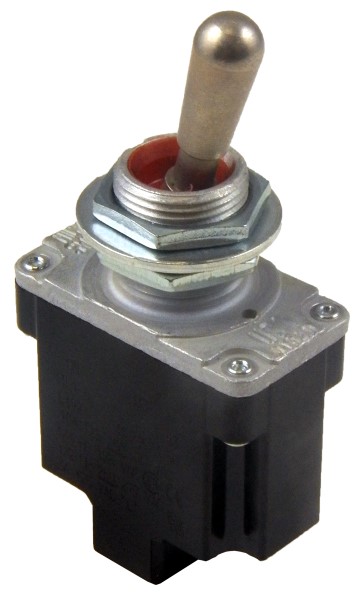

HONEYWELL 1TL1-1 拨动开关
The is a single-pole double-throw MICRO SWITCH™ military-grade Toggle Switch with screw termination, 3-position action, bushing 15/32-inch mounting and standard lever type. MICRO SWITCH™ TL series toggle switch have high strength, temperature-resistant, non-tracking case material and silver cadmium oxide contacts.
- .
- Environment-proof sealing
- .
- Step-design case provides added space between terminals to help prevent shorting
- .
- Completely sealed switching chamber
- .
- -85 to 160°F Operating temperature range
Do not use these products as safety or emergency stop devices or in any other application where failure of the product could result in personal injury.
接触器类型 Standard
额定电压AC 125 V
额定电流 15 A
方向 Vertical
触点类型 SPDT
针脚数 3
触点额定电流 750 mA
额定电流Max 20A @28VDC
工作温度Max 71 ℃
工作温度Min -65 ℃
额定电压 125 VAC
安装方式 Panel, Screw Terminals
长度 28.4 mm
宽度 15.7 mm
高度 29.46 mm
触点材质 Silver Cadmium Oxide
工作温度 -65℃ ~ 71℃
产品生命周期 Active
包装方式 Bulk
制造应用 Automation & Process Control, 医用, 自动化与过程控制, 军用与航空, Aerospace, Defence, Military, 国防, Test & Measurement, 建筑自动化, Building Automation, 工业, 测试与测量, Industrial, Agriculture, 国防, 军用与航空, Medical, 农业
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
军工级 Yes
REACH SVHC版本 2014/06/16
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
1TL1-1 Honeywell 霍尼韦尔 | 当前型号 | 当前型号 |
8500K1 赛峰 | 类似代替 | 1TL1-1和8500K1的区别 |
8800K16 伊顿巴斯曼 | 功能相似 | 1TL1-1和8800K16的区别 |
