拨动开关 NONE ON ON
MICRO SWITCH™ Miniature Toggle Switches: TW Series, Single Pole Single Throw SPST 2 Position, Half Throw Off - On, Solder Terminals, 15/32 Inch Bushing, Round White Plastic Lever
贸泽:
拨动开关 NONE ON ON
艾睿:

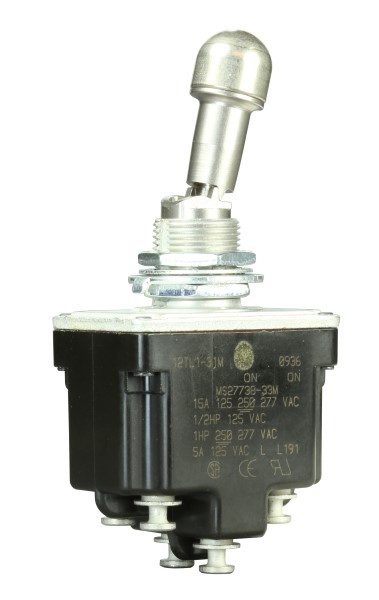

Control the status of your project with this 12TL1-31M toggle switch from Honeywell. It has a DPDT configuration. This device has a maximum current rating of 20 A @ 28VDC. This toggle switch has a minimum operating temperature of -65 °C and a maximum of 72 °C. The 12TL1-31M toggle switch has a solder termination style. The maximum AC voltage rating is 277 VAC and the maximum DC voltage rating is 250 VDC. This product is 34.04 mm long, 75.95 mm tall and 23.11 mm deep.
Allied Electronics:
SWITCH TOGGLE DPDT 15A 125V
Verical:
Switch Toggle None ON ON DPDT Locking Lever Solder 20A 277VAC 250VDC 745.7VA Panel Mount with Threads
MASTER:
MICRO SWITCH™ Toggle Switches: TL Series, Double Pole Double Throw DPDT 2 Position, Half Throw On - On, Solder Turret Terminals, Locking Lever Locked Out Of And Into Extreme Position, Opposite Keyway, Military Part Number MS27738-33M
Online Components:
MICRO SWITCH™ Miniature Toggle Switches: TW Series, Single Pole Single Throw SPST 2 Position, Half Throw Off - On, Solder ...
Electro Sonic:
MICRO SWITCH™ Toggle Switches: TL Series, Double Pole Double Throw DPDT 2 Position, Half Throw On - On, Solder Turret ...
额定电压AC 125 V
额定电流 15 A
额定电流Max 20A @28VDC
工作温度Max 72 ℃
工作温度Min -65 ℃
额定电压 125 V
额定电压DC Max 250 V
额定电压AC Max 277 V
安装方式 Panel, Screw-In
高度 75.95 mm
触点材质 Silver Cadmium Oxide
工作温度 -65℃ ~ 72℃
产品生命周期 Active
包装方式 Bulk
RoHS标准 Non-Compliant
含铅标准 Contains Lead
军工级 Yes
ECCN代码 EAR99
HTS代码 8536509040
