1TL1-8F

Pull-to-Unlock Toggle Switch SPDT On-On momentary / maintained 10A/125VAC 10A/250VAC 15A/28VDC

These switches are qualified under MIL-S-3950.

欧时:
SPDT MomOn OnScrewTerm

艾睿:

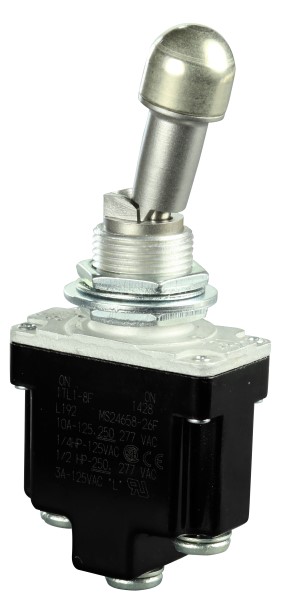

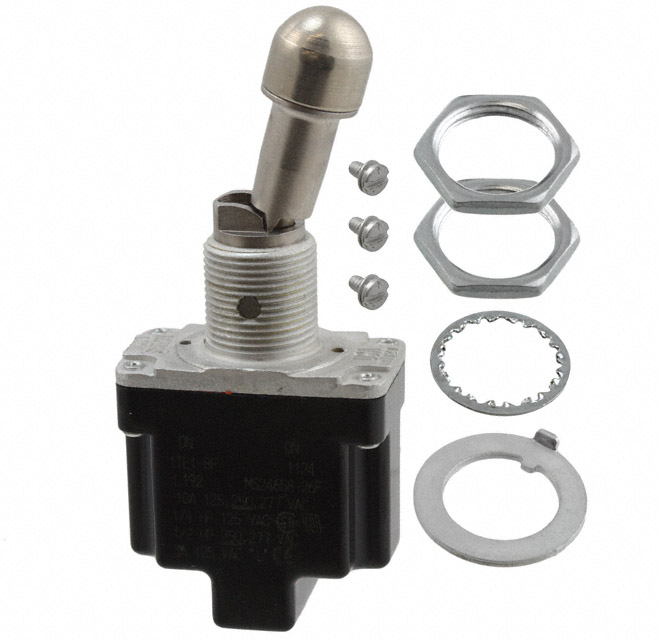

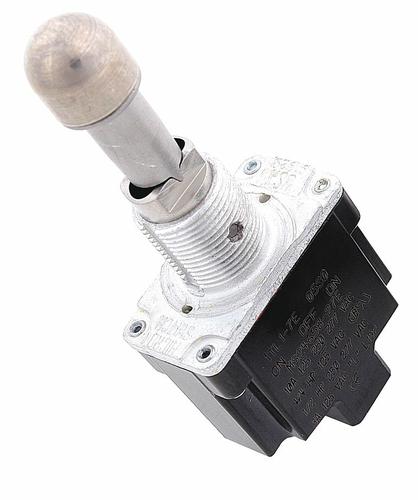

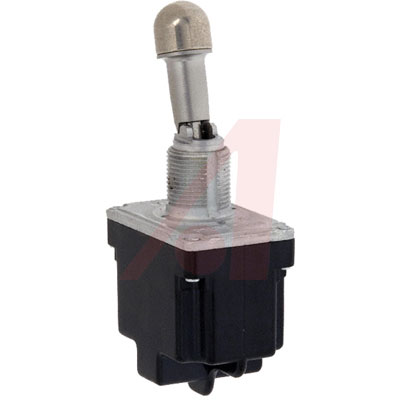

This compact 1TL1-8F toggle switch from Honeywell makes it possible to turn on and off certain parts of your circuits. This device has a maximum current rating of 15 A @ 115VAC 28VDC. It has a SPDT configuration. This toggle switch has an operating temperature range of -65 °C to 71 °C. The 1TL1-8F toggle switch has a screw termination style. This product is 28.4 mm long and 15.7 mm. The maximum AC voltage rating is 277 VAC and the maximum DC voltage rating is 250 VDC.

Allied Electronics:
Toggle Switch, SPST, On None On, Lockone Side, 10A 125VAC, Sealed, UL CSA

Chip1Stop:
Switch Toggle ON ON SPDT Locking Lever Screw 15A 277VAC 250VDC 372.85VA Panel Mount with Threads

Verical:
Switch Toggle ON ON SPDT Locking Lever Screw 15A 277VAC 250VDC 372.85VA Panel Mount with Threads

Newark:
# HONEYWELL  1TL1-8F  Toggle Switch, SPDT, Non Illuminated, On-On, TL Series, 15 A

MASTER:
MICRO SWITCH™ Toggle Switches: TL Series, Single Pole Double Throw SPDT 2 Position Mom. On - On, Screw Terminals, Locking Lever Locked In Extreme Position, Opposite Keyway, Military Part Number MS24658-26F

Online Components:
MICRO SWITCH™ Toggle Switches: TL Series, Single Pole Double Throw SPDT 3 Position On - Off - On, Screw Terminals, ...
