14CE超紧凑型和完全密封 通过预接线形成受限区域 触点 | 单极转换 ---|--- 主体材料 | 压铸锌 触点额定值 | 5A,240V 时(电阻) 标准 | IEC947-5-1, EN 60947-5-1
金属封装 14CE
超紧凑型和完全密封
通过预接线形成受限区域
### 认可
UL; CSA
欧时:
Limitswitch w/inline roller plunger IP66
艾睿:

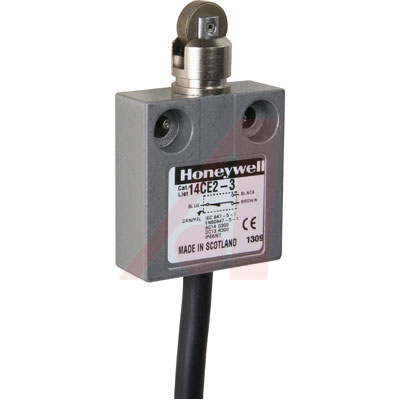

Look no further than the miniature 14CE2-3 limit switch from Honeywell, a device that operates via the switch&s;s motion or in the presence of another object. It has a SPDT configuration. 14CE2-3 is housed in zinc die cast. This device has a maximum current rating of 5 A @ 250VAC. This limit switch has an operating temperature range of 0 °C to 70 °C. The 14CE2-3 limit switch has a cable termination style. This product is 40 mm long, 67 mm tall and 16 mm deep. The maximum AC voltage rating is 250 VAC.
Allied Electronics:
IP66 Snap Action Limit Switch, Plunger, Die Cast Zinc, NO/NC, 240V
Chip1Stop:
Switch Limit N.O./N.C. SPDT Top Roller Plunger Cable 5A 250VAC 11.8N Linear Screw Mount
TME:
Limit switch; oblong metal roller Ø12,4mm; SPDT; 5A; max240VAC
Verical:
Switch Limit N.O./N.C. SPDT Top Roller Plunger Screw Mount 5A 250VAC 11.8N Linear Cable Automotive
MASTER:
MICRO SWITCH™ Medium-Duty Limit Switches: 14CE Series Miniature Enclosed Switch, Designed for European Applications CE Approved, Top Roller Parallel Plunger Actuator, 1NC 1NO Single Pole Double Throw SPDT Snap Action, 3 m Harmonized CENELEC Cable
Online Components:
MICRO SWITCH™ Basic Switches: V15W Watertight Miniature Basic Switch Series, 10 A 125/250 Vac, 300 mm Lead Wire Termination, Single ...
Electro Sonic:
MICRO SWITCH™ Medium-Duty Limit Switches: 14CE Series Miniature Enclosed Switch, Designed for European Applications CE Approved, Top Roller Parallel Plunger ...
触点电镀 Silver
接触器类型 Top Roller Plunger
额定电压AC 250 V
额定电流 5A AC
触点类型 SPDT
额定电流Max 5A @250VAC
工作温度Max 70 ℃
工作温度Min 0 ℃
额定电压AC Max 250 V
安装方式 Screw
长度 49 mm
宽度 40 mm
高度 67 mm
脚长度 3.00 m
工作温度 0℃ ~ 70℃
外壳材质 Zinc Die-Cast
产品生命周期 Active
包装方式 Bulk
制造应用 Automotive, Robotics, Commercial, Industrial
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
ECCN代码 EAR99
HTS代码 8536509055
