1LS1

LS 中型限位开关Honeywell 的 LS 限位开关系列具有工业应用中长期成功运行的记录。 LS 微型开关适合许多对任何其他完全可调限位开关来说太小的地方。 200LS 开关采用原始的插入式概念，通过使转换简单快速减少停机时间。

LS 中型限位

的 LS 限位开关系列具有工业应用中长期成功运行的记录。 LS 微型开关适合许多对任何其他完全可调限位开关来说太小的地方。 200LS 开关采用原始的插入式概念，通过使转换简单快速减少停机时间。

欧时:

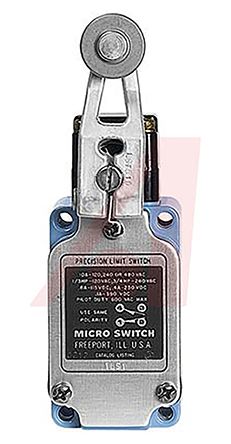

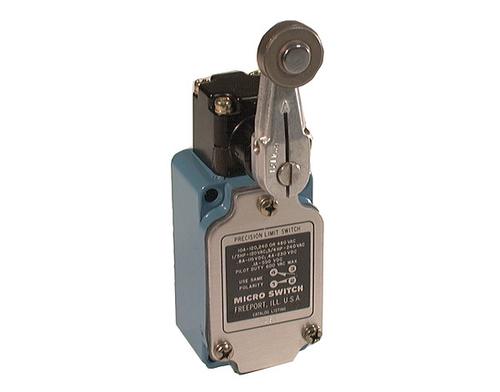

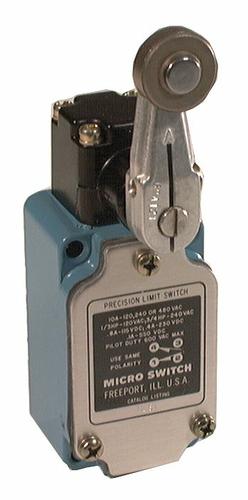

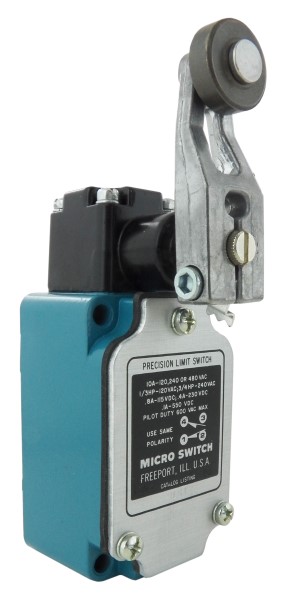

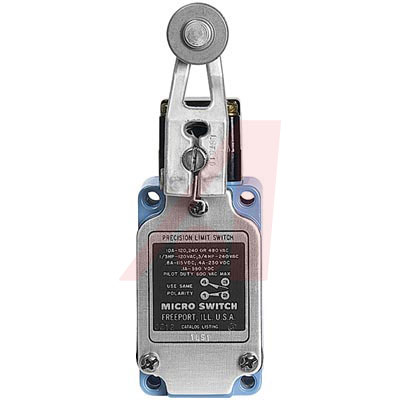

Honeywell 压铸锌外壳 快速动作 限位开关 1LS1, 旋转杠杆, SPDT, 常开/常闭, 120 V, 240 V, 480 V

贸泽:
Limit Switches 1NC 1NO SPDT Side Rotary

艾睿:
The enclosed 1LS1 limit switch from Honeywell can provide your processor with information on the location or motion of the device based on electro-mechanical connections. It has a SPDT configuration. 1LS1 is housed in zinc die cast. This device has a maximum current rating of 0.8 A @ 115VDC. This limit switch has an operating temperature range of -29 °C to 71 °C. The 1LS1 limit switch has a conduit termination style. The maximum DC voltage rating is 550 VDC. This product is 39.88 mm long, 93.98 mm tall and 57.1 mm deep.

Allied Electronics:
Limit Switch, Compact, Actuator-Roller Lever, 2 Circuit Double Break

Chip1Stop:
Switch Limit N.O./N.C. SPDT Side Rotary with Roller Lever Conduit 0.8A 550VDC Rotary Screw Mount

Verical:
Switch Limit N.O./N.C. SPDT Side Rotary with Roller Lever Screw Mount 0.8A 550VDC Rotary Conduit Automotive

Newark:
# HONEYWELL  1LS1  Limit Switch, Side Rotary, SPDT-1NO, SPDT-NC, 10 A, 480 V, 0.51 N-m

MASTER:
MICRO SWITCH™ General Purpose Limit Switches: LS Series, Epoxy-Coated Zinc Housing, Non Plug-in Body Style, Side Rotary, Fixed Length Roller Lever, Ø 19 mm x 6 mm [0.75 in x 0.24 in] Steel Roller, 1NC 1NO Single Pole Double Throw SPDT Snap Action, Doubl

Online Components:
This SPDT-DB non plug-in limit switch from Honeywell features a 1.5 inch lever with an operating force of 4.5 inch/lb. ...

GOPHER:
Enclosed Limit Switch SPDT 10 AMP SCREW TERMINAL SIDE MOUNT NON-PLUG IN;FIXED SIDE ROLLER LEVER, 1/2-14 NPT MICRO SWITCH

Electro Sonic:
MICRO SWITCH™ General Purpose Limit Switches: LS Series, Epoxy-Coated Zinc Housing, Non Plug-in Body Style, Side Rotary, Fixed Length Roller ...
