11HM1

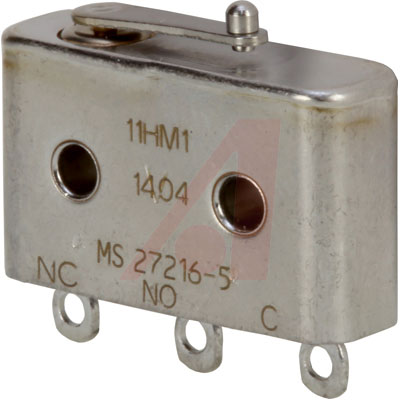

HONEYWELL  11HM1  微动开关, 合页杆式, SPDT, 3A 115V

HM Series Hermetically Sealed Basic Switch

* Choice of actuation and termination

* Compact size, light weight

Basic switch contain contacts in a sealed chamber. A gas-tight seal is maintained while transmitting force and motion to the switch mechanism through a metal diaphragm

艾睿:
This 11HM1 snap-action switch from Honeywell can be actuated with very little physical force. It has a SPDT configuration. This device has a maximum current rating of 3 A @ 28VDC. This snap action switch has an operating temperature range of -184 °C to 122 °C. The 11HM1 snap action switch has a solder termination style. The maximum AC voltage rating is 115 VAC and the maximum DC voltage rating is 115 VDC. This product is 20.04 mm long, 19.05 mm tall and 6.35 mm deep.

Allied Electronics:
HM HERMETICALLY SEALED BASIC SW

Chip1Stop:
Switch Snap Action N.O./N.C. SPDT Roller Lever Solder 3A 115VAC 115VDC 1.95N Screw Mount

Verical:
Switch Snap Action N.O./N.C. SPDT Roller Lever 3A 115VAC 115VDC 1.95N Screw Mount Solder Automotive

Newark:
# HONEYWELL  11HM1  Microswitch, HM Series, SPDT, Solder, 3 A, 115 VAC, 28 VDC

MASTER:
MICRO SWITCH™ Miniature Hermetically Sealed Basic Switches: HM Series, Single Pole Double Throw SPDT, 3 A at 28 Vdc, Stainless Steel Enclosure, Thru-Hole Solder Termination, -184 °C to 121 °C [-300 °F to 250 °F], For UL 508 Applications -65 °C to 125 °C

Online Components:
MICRO SWITCH™ Miniature Hermetically Sealed Basic Switches: HM Series, Single Pole Double Throw SPDT, 3 A at 28 Vdc, Stainless ...

Electro Sonic:
MICRO SWITCH™ Miniature Hermetically Sealed Basic Switches: HM Series, Single Pole Double Throw SPDT, 3 A at 28 Vdc, Stainless ...
