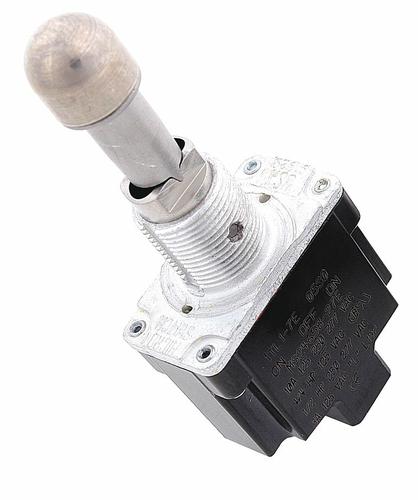

1TL1-3G图片2
1TL1-3G图片3

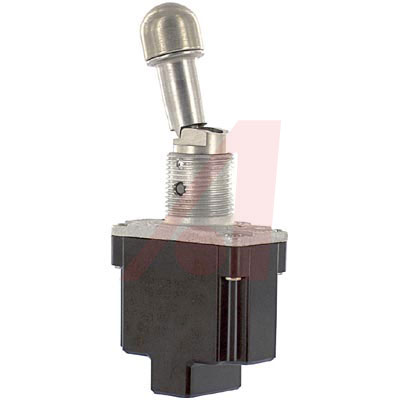

1TL1-3G图片4
1TL1-3G图片5

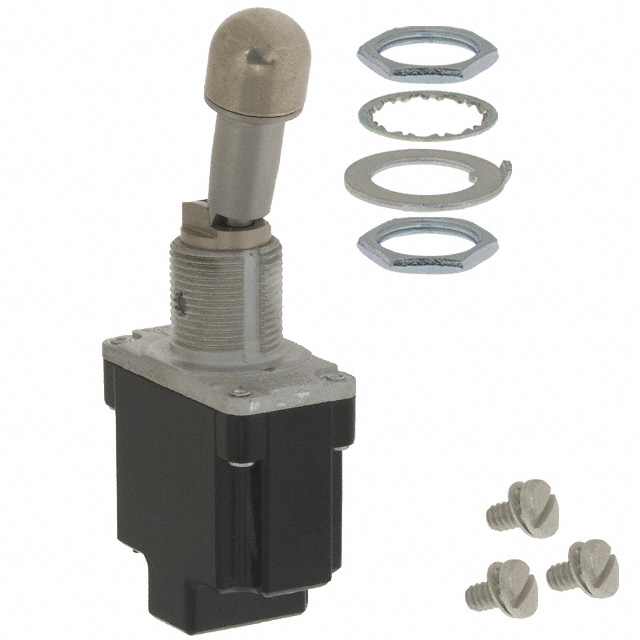

1TL1-3G图片6
1TL1-3G图片7
1TL1-3G图片8
1TL1-3G概述

Switch Toggle ON ON SPDT Locking Lever Screw 20A 277VAC 115VDC Panel Mount with Threads

"s low-energy TL Series toggle switches were introduced to give designers the option of gold-plated contacts for switching “non-arching” loads. A range of circuitry, sealing levels and sizes provide even more options to maximize flexibility and enhance performance. This popular product line is UL recognized, CSA certified and CE approved as well as customer lauded.

TL toggle switches from Honeywell feature:

* Silver and/or gold-plated contacts for increased application flexibility

* High strength for durability in tough conditions

* Temperature resistant materials to enhance performance in challenging environments

* Non-tracking case material

* Quality at a competitive price

1TL1-3G中文资料参数规格
技术参数

额定电流 15 A

方向 Vertical

触点类型 SPDT

针脚数 2

额定电流Max 20A @28VDC

工作温度Max 71 ℃

工作温度Min -65 ℃

额定电压 125 VAC

额定电压DC Max 115 V

额定电压AC Max 277 V

封装参数

安装方式 Panel, Screw Terminals

外形尺寸

长度 28.45 mm

宽度 15.75 mm

高度 72.9 mm

物理参数

触点材质 Silver Cadmium Oxide

工作温度 -65℃ ~ 71℃

其他

产品生命周期 Active

包装方式 Bulk

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

海关信息

ECCN代码 EAR99

数据手册

在线购买1TL1-3G
型号: 1TL1-3G
描述:Switch Toggle ON ON SPDT Locking Lever Screw 20A 277VAC 115VDC Panel Mount with Threads
