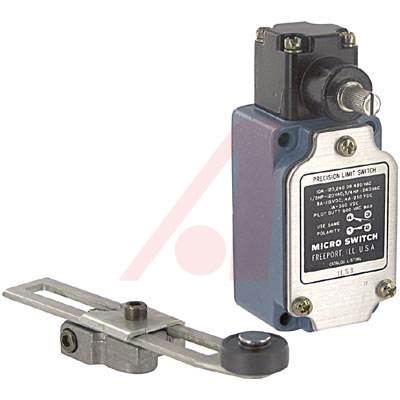

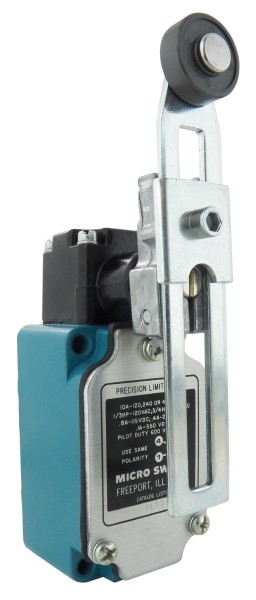

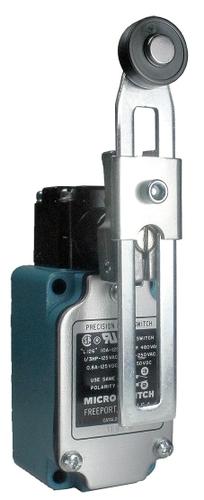

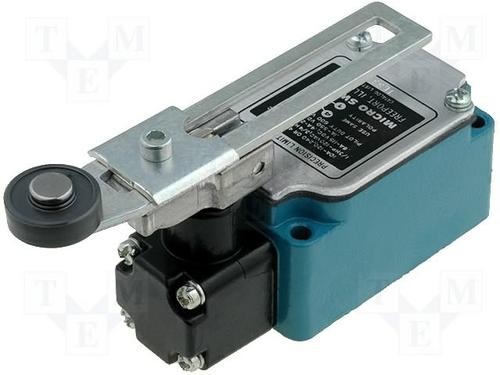

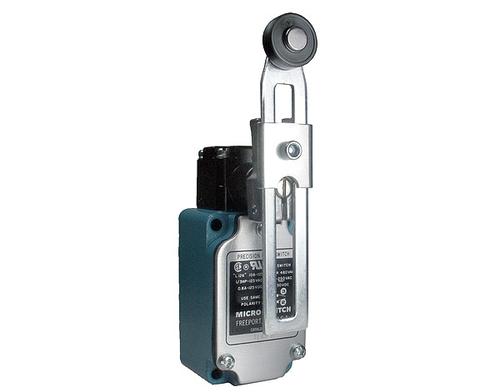

1LS3

Snap Action Limit Switch, Rotary Lever, Die Cast Zinc, NO/NC, 120V, 240V, 480V

Compact Limit Switches, 10 A, Silver Cadmium Oxide Material, 120/240/480 VAC

The Compact LS has a long record of successful performance in industrial applications. The LS fits in many places too small for any other fully adjustable limit switch.

** Features**

* Wide Choice of Operating Heads and Actuators

* Captive Screws

** Specifications**

* Field Adjustable Rotary Motion Actuators Through 360°

* Sealing: NEMA 1, 3, 4, 6, 13

艾睿:
This enclosed 1LS3 limit switch from Honeywell can activate different components within your circuitry based on electro-mechanical connections within the switch. It has a SPDT configuration. This device has a maximum current rating of 0.8 A @ 115VDC. 1LS3 is housed in zinc die cast. This limit switch has an operating temperature range of -29 °C to 71 °C. The 1LS3 limit switch has a conduit termination style. This product is 39.88 mm long, 176.61 mm tall and 63.88 mm deep. The maximum DC voltage rating is 550 VDC.

Allied Electronics:
Limit Switch, Compact, Rotary Actuated w/ Lever

Chip1Stop:
Switch Limit N.O./N.C. SPDT Side Rotary with Adjustable Roller Lever Conduit 0.8A 550VDC Rotary Screw Mount

TME:
Limit switch; adjustable lever R 30,6-88,9mm, plastic roller

Verical:
Switch Limit N.O./N.C. SPDT Side Rotary with Adjustable Roller Lever Screw Mount 0.8A 550VDC Rotary Conduit Automotive

Newark:
# HONEYWELL  1LS3  Limit Switch, Side Rotary, SPDT-1NO, SPDT-NC, 10 A, 480 V, 0.51 N-m

MASTER:
MICRO SWITCH™ General Purpose Limit Switches: LS Series, Epoxy-Coated Zinc Housing, Non Plug-in Body Style, Side Rotary, Adjustable Roller Lever, Ø 19 mm x 6 mm [0.75 in x 0.24 in] Nylon Roller, 1NC 1NO Single Pole Double Throw SPDT Snap Action, Double

Online Components:
Honeywell Limit Switch 1LS3 10 Amp, NPT conduit termination, Adjustable Length Lever.

Electro Sonic:
MICRO SWITCH™ General Purpose Limit Switches: LS Series, Epoxy-Coated Zinc Housing, Non Plug-in Body Style, Side Rotary, Adjustable Roller Lever, ...
