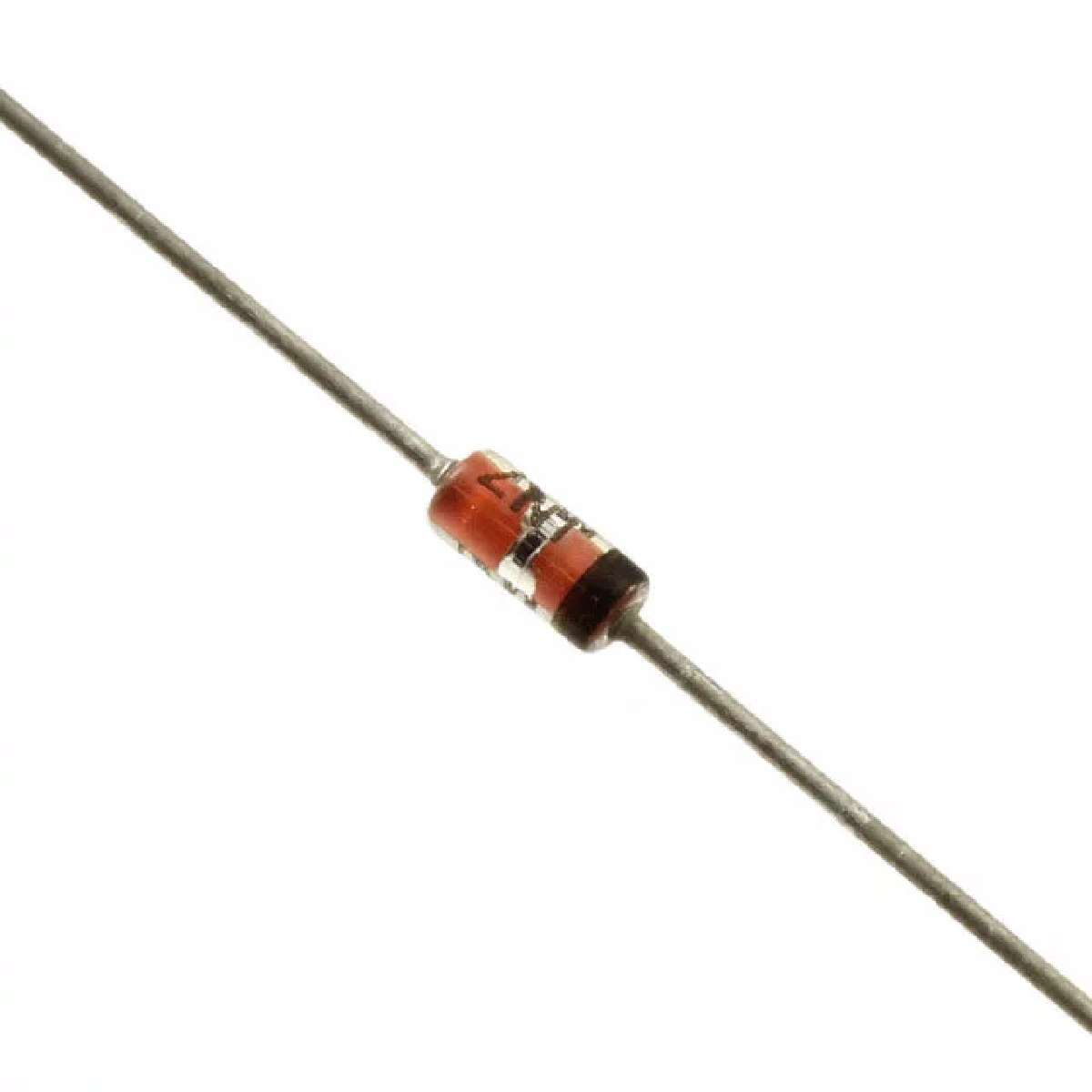

1N752A-1

SILICON 400毫瓦齐纳二极管 SILICON 400 mW ZENER DIODES

• 1N746A-1 THRU 1N759-1 AVAILABLE IN JAN, JANTX AND JANTXV PER MIL-PRF-19500/127

• 1N4370A-1 THRU 1N4372A-1 AVAILABLE IN JAN, JANTX AND JANTXV PER MIL-PRF-19500/127

• DOUBLE PLUG CONSTRUCTION

• METALLURGICALLY BONDED

MAXIMUM RATINGS

  Operating Temperature: -65°C to +175°C

  Storage Temperature: -65°C to +175°C

  DC Power Dissipation: 500 mW @ +50°C

  Power Derating: 4 mW / °C above +50°C

  Forward Voltage @ 200mA: 1.1 volts maximum

艾睿:
Need to run a diode in the breakdown region? No problem, use a voltage regulator 1N752A-1 zener diode from Microsemi. Its test current is 20 mA. Its maximum leakage current is 5 μA. This device has a maximum regulator current of 65 mA. Its maximum power dissipation is 500 mW. It is made in a single configuration. This zener diode has a minimum operating temperature of -65 °C and a maximum of 175 °C. This zener device has a nominal voltage of 5.6 V and a voltage tolerance of 5%.
