Basic / Snap Action Switches 0.5Nm .369lbft mx 15A 1NC 1NO SPDT Snap
CX hazardous area switches are weatherproof, water-tight, dust-tight, highly reliable and rugged switches often used in control valves, petrochemical, conveyors, grain elevators, and material handling.
贸泽:
Basic / Snap Action Switches .5Nm .369lbft mx 15A 1NC 1NO SPDT Snap
艾睿:

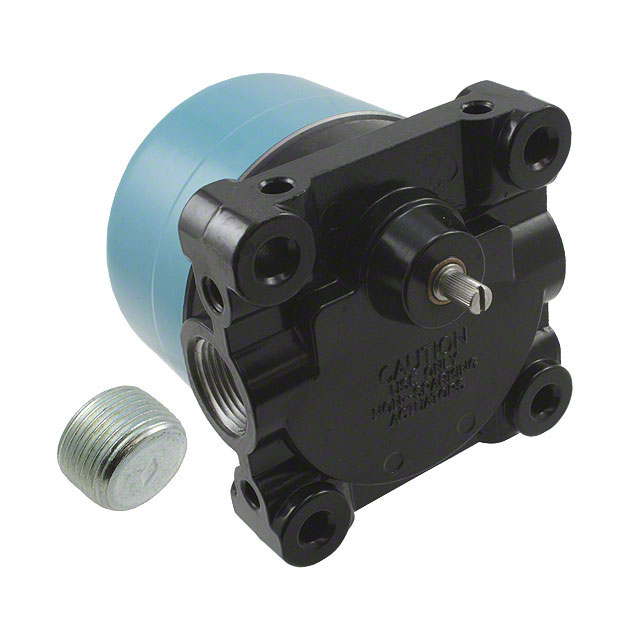

Are you looking for a device that can relay information to the processor based on its motion? The explosion proof 11CX12 limit switch from Honeywell is for you. It has a DPDT configuration. 11CX12 is housed in aluminum. This device has a maximum current rating of 15 A @ 480VAC@CSA/UL. This limit switch has a minimum operating temperature of -25 °C and a maximum of 85 °C. The 11CX12 limit switch has a conduit termination style. This product is 101.6 mm long, 101.6 mm tall and 126.3 mm deep. The maximum AC voltage rating is 480 VAC and the maximum DC voltage rating is 250@CSA/UL VDC.
Allied Electronics:
Switch; Limit; Explosion Proof; Short Housing; Side Rotary; SPDT; Maintained
Verical:
Switch Limit N.O./N.C. DPDT Side Rotary Conduit 15A 480VAC 250VDC 1/4HP Rotary Screw Mount
Newark:
# HONEYWELL 11CX12 Limit Switch, Side Rotary, SPDT-1NO, SPDT-NC, 15 A, 480 V, 0.5 N, CX Series
MASTER:
MICRO SWITCH™ Hazardous Location Switches: CX Series, Epoxy-Coated Aluminum Short Housing, Side Rotary, Maintained, 2 Single Pole Double Throw SPDT Basic Switches, 15 A 125, 250, or 480 Vac, NEMA 1, 3, 4, 4X, 6, 6P, 13, and IP66 Seal Rating, Operating
Online Components:
Switch Limit N.O./N.C. DPDT Side Rotary Conduit 15A 480VAC 250VDC 1/4HP Rotary Screw Mount
Electro Sonic:
MICRO SWITCH™ Hazardous Location Switches: CX Series, Epoxy-Coated Aluminum Short Housing, Side Rotary, Maintained, 2 Single Pole Double Throw SPDT ...
