Switch Snap Action N.O./N.C. SPDT Lever Wire Lead 3A 115VAC 28VDC 1.95N Screw Mount
HM Series Hermetically Sealed Basic Switch
* Choice of actuation and termination
* Compact size, light weight
Basic switch contain contacts in a sealed chamber. A gas-tight seal is maintained while transmitting force and motion to the switch mechanism through a metal diaphragm
艾睿:

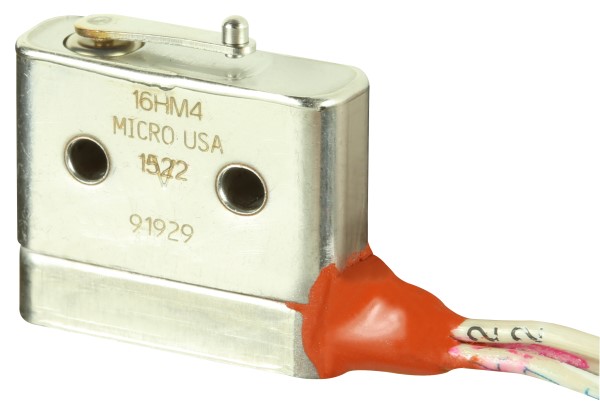

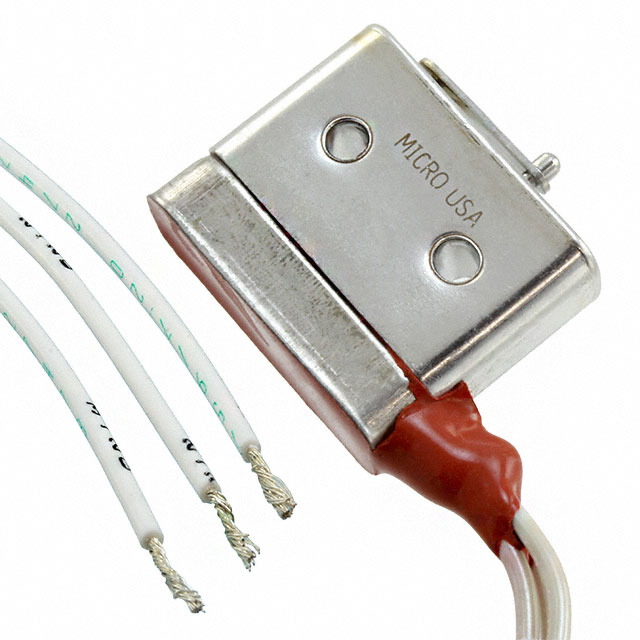

Look no further for a switch to quickly open or close your circuit and use the 16HM4 snap-action switch from Honeywell. It has a SPDT configuration. This device has a maximum current rating of 3 A @ 28VDC. This snap action switch has a minimum operating temperature of -65 °C and a maximum of 260 °C. The 16HM4 snap action switch has a wire lead termination style. This product is 24.36 mm long, 19.94 mm tall and 6.35 mm deep. The maximum AC voltage rating is 115 VAC and the maximum DC voltage rating is 28 VDC.
Allied Electronics:
Basic Switch, Sealed, SPDT, 28 VDC, 1 Amp Inductive Load, Enclosed
Chip1Stop:
Switch Snap Action N.O./N.C. SPDT Lever Wire Lead 3A 115VAC 28VDC 1.95N Screw Mount
Verical:
Switch Snap Action N.O./N.C. SPDT Lever 3A 115VAC 28VDC 1.95N Screw Mount Wire Lead
MASTER:
MICRO SWITCH™ Miniature Hermetically Sealed Basic Switches: HM Series, Single Pole Double Throw SPDT, 3 A at 28 Vdc, Stainless Steel Enclosure, 3 457 mm [18 in] Lead Wire Termination 22 Gage, Leads Exit Opposite Actuator, Terminal Guard, -65 °C to 2
Online Components:
MICRO SWITCH™ Miniature Hermetically Sealed Basic Switches: HM Series, Single Pole Double Throw SPDT, 0.5 A at 28 Vdc, Gold-Plated ...
Electro Sonic:
MICRO SWITCH™ Miniature Hermetically Sealed Basic Switches: HM Series, Single Pole Double Throw SPDT, 3 A at 28 Vdc, Stainless ...
