MLCC-多层陶瓷电容器
MLCC-多层陶瓷器
得捷:

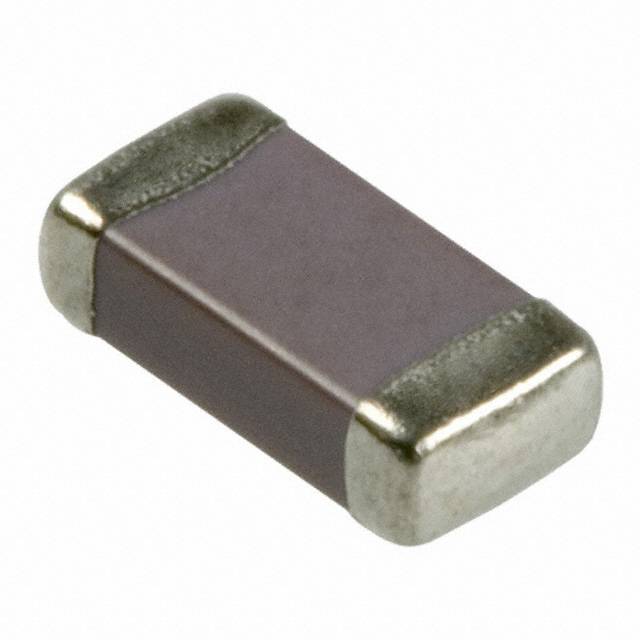

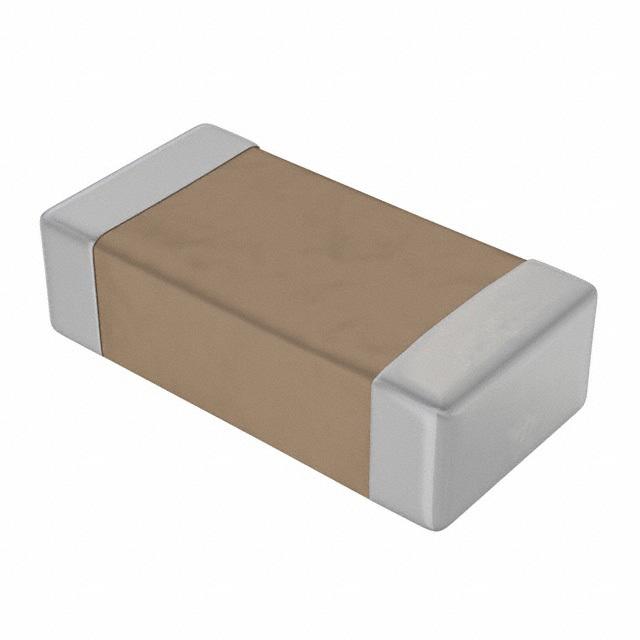

CAP CER 330PF 1KV X7R 1206
艾睿:
Available with a variety of capacitance values, voltage ratings, package sizes, and other parameters, this 1206AC331KAT1A multilayer ceramic capacitor from AVX can be used in multiple applications and for various purposes. It can withstand a voltage of 1000 VDC. This MLCC capacitor has a maximum operating temperature of 125 °C. This product will be shipped in tape and reel packaging for quick mounting and safe delivery. This product is 3.2 mm long, 1.52Max mm tall and 1.6 mm deep. Its capacitance value is 330pF. It has a tolerance of 10%.
安富利:
Cap Ceramic 330pF 1000V X7R 10% SMD 1206 125°C T/R
额定电压DC 1.00 kV
电容 330 pF
容差 ±10 %
电介质特性 X7R
工作温度Max 125 ℃
工作温度Min -55 ℃
额定电压 1000 V
安装方式 Surface Mount
封装公制 3216
封装 1206
长度 3.2 mm
宽度 1.6 mm
高度 1.52 mm
封装公制 3216
封装 1206
材质 X7R/-55℃~+125℃
工作温度 -55℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
最小包装 2000
制造应用 通用
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
1206AC331KAT1A AVX 艾维克斯 | 当前型号 | 当前型号 |
1206AC331KA11A 艾维克斯 | 功能相似 | 1206AC331KAT1A和1206AC331KA11A的区别 |
