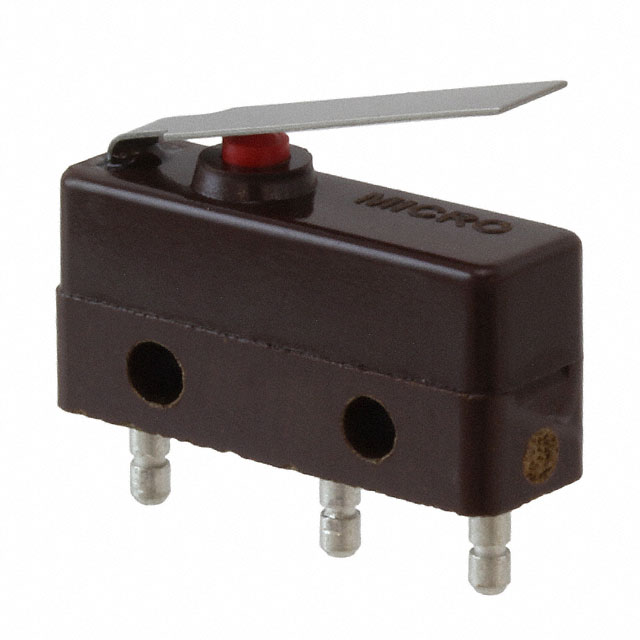

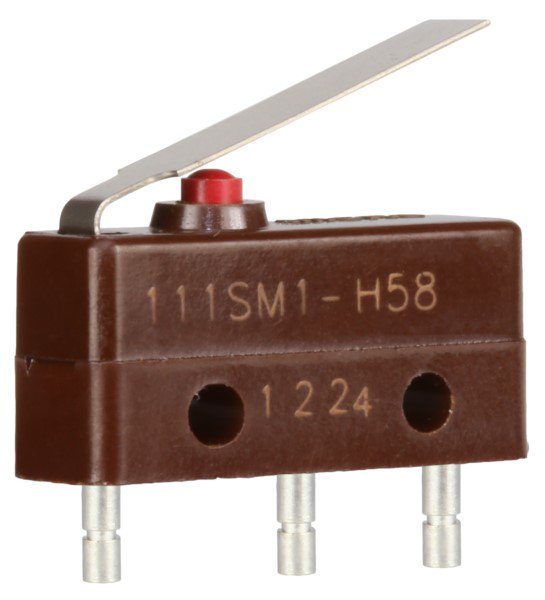

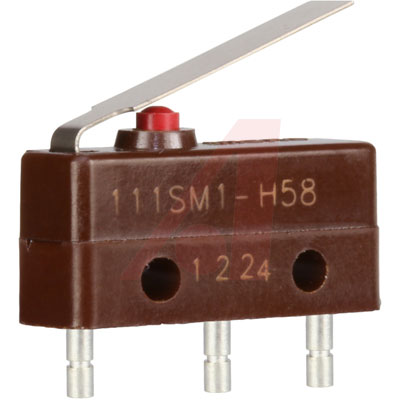

HONEYWELL 111SM1-H58 微动开关, SPDT, 快速连接, 5 A, 250 VAC, 30 VDC
** Micro Switch™ - SM Series Subminiature Switch**
The Honeywell series of sub miniature switches have been designed for simple and precision on/off application needs. The micro switch combines small size and light weight with precision operation, ample electrical capacity and long operating life.
贸泽:
基本/快动开关 BASIC SWITCH SPDT 250Vac 5A STR LEVER
e络盟:
微动开关, 微型, 直型杆, SPDT, 快速连接, 5 A, 30 VDC
艾睿:
If you&s;re looking for rapid switching to close your circuit use this 111SM1-H58 snap-action switch from Honeywell. It has a SPDT configuration. This device has a maximum current rating of 5. This snap action switch has an operating temperature range of -53 °C to 121 °C. The 111SM1-H58 snap action switch has a solder termination style. The maximum AC voltage rating is 250CE/CSA/KEMA/UL VAC and the maximum DC voltage rating is 30 VDC. This product is 19.84 mm long, 20.75 mm tall and 6.35 mm deep.
Allied Electronics:
Subminiature Switch, Basic, SPDT, 250 VAC, 5 Amps, Straight Lever
Chip1Stop:
Switch Snap Action N.O./N.C. SPDT Leaf Lever Solder 5A 250VAC 30VDC 1.95N Screw Mount
Verical:
Switch Snap Action N.O./N.C. SPDT Leaf Lever Solder 5A 250VAC 30VDC 1.95N Screw Mount
MASTER:
MICRO SWITCH™ Subminiature Basic Switches: SM Series, Single Pole Double Throw SPDT, 5 A 250 Vac, 1,95 N [7.0 oz] Maximum Operating Force, 4,83 mm [0.19 in] Integral Flexible Leaf with Straight Lever Actuator, 3,94 mm x 1,47 mm [0.155 in x 0.058 in] Qui
Online Components:
MICRO SWITCH™ Subminiature Basic Switches: SM Series, Single Pole Double Throw SPDT, 5 A 250 Vac, 1,95 N [7.0 oz] ...
Electro Sonic:
MICRO SWITCH™ Subminiature Basic Switches: SM Series, Single Pole Double Throw SPDT, 5 A 250 Vac, 1,95 N [7.0 oz] ...
