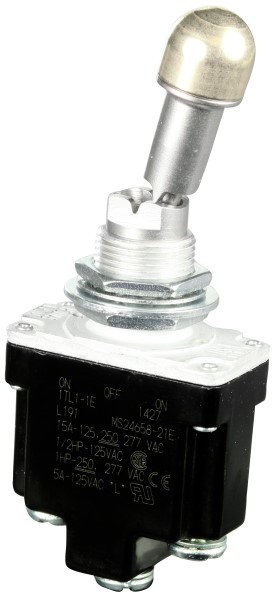

1TL1-1E图片13
1TL1-1E图片14

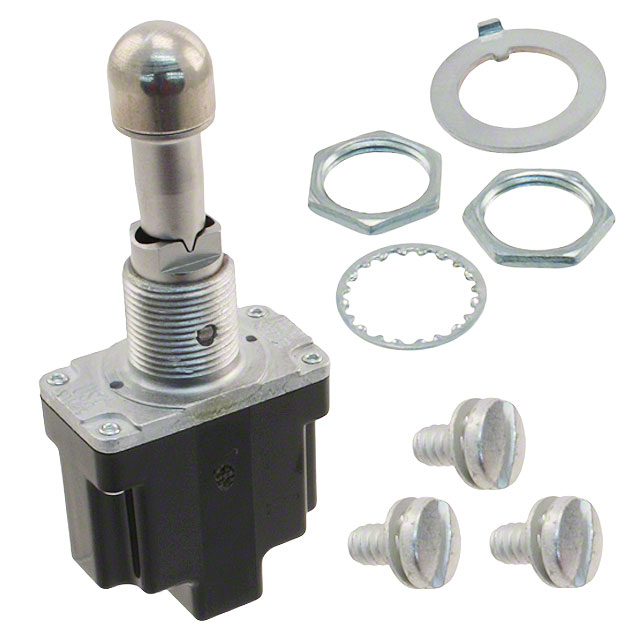

1TL1-1E图片15
1TL1-1E图片16
1TL1-1E概述

Switch Toggle ON OFF ON SPDT Locking Lever Screw 20A 277VAC 250VDC 745.7VA Panel Mount with Threads

"s low-energy TL Series toggle switches were introduced to give designers the option of gold-plated contacts for switching “non-arching” loads. A range of circuitry, sealing levels and sizes provide even more options to maximize flexibility and enhance performance. This popular product line is UL recognized, CSA certified and CE approved as well as customer lauded.

TL toggle switches from Honeywell feature:

* Silver and/or gold-plated contacts for increased application flexibility

* High strength for durability in tough conditions

* Temperature resistant materials to enhance performance in challenging environments

* Non-tracking case material

* Quality at a competitive price

1TL1-1E中文资料参数规格
技术参数

额定电压DC 250 V

额定电压AC 277 V

额定电流 15 A

触点类型 SPDT

额定电流Max 20A @28VDC

额定功率Max 745.7 VA

工作温度Max 71 ℃

工作温度Min -65 ℃

额定电压 125 VAC

封装参数

安装方式 Panel

外形尺寸

长度 28.4 mm

高度 72.9 mm

物理参数

触点材质 Silver Cadmium Oxide

工作温度 -65℃ ~ 71℃

其他

产品生命周期 Active

包装方式 Bulk

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

REACH SVHC标准 No SVHC

军工级 Yes

海关信息

ECCN代码 EAR99

HTS代码 8536509065

数据手册

在线购买1TL1-1E
型号: 1TL1-1E
描述:Switch Toggle ON OFF ON SPDT Locking Lever Screw 20A 277VAC 250VDC 745.7VA Panel Mount with Threads
