11TW1-3

HONEYWELL  11TW1-3  拨动开关, SPDT, 5A, 125V

Miniature Toggle Switches, 5 A @ 125 VAC Contact Rating

Miniature Toggle Switches Miniature toggle switches qualified to MIL-S-83731.

** Features**

* SPDT and DPDT Circuitry

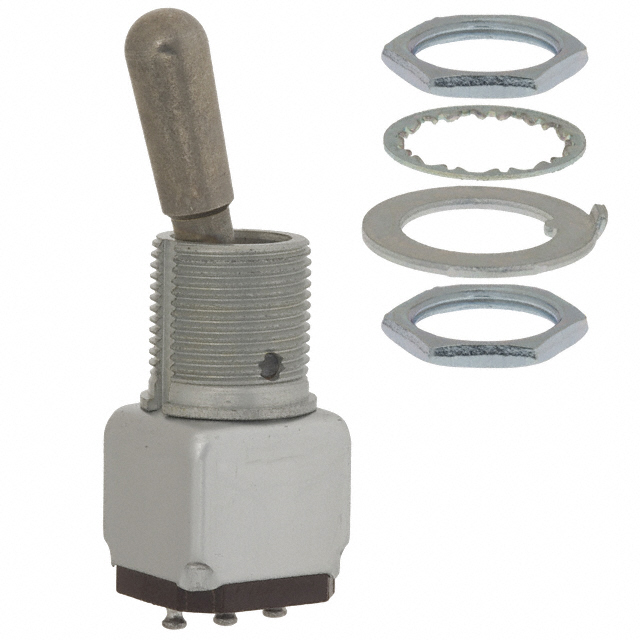

* All Switches Come with a Lockwasher, a Keying Washer and 2 Hex Nuts

* Choice of 1/4" or 15/32" Bushings

* Sealed Bushing Versions

* Save Space and Weight

** Specifications**

* UL Recognized

* Operating Temperature: -85° to +160°F

立创商城:
11TW1-3

e络盟:
开关, 拨动, SPDT, 5A, 125V

艾睿:
With this 11TW1-3 toggle switch from Honeywell you can toggle on or off various components of your application. It has a SPDT configuration. This device has a maximum current rating of 5. This toggle switch has an operating temperature range of -65 °C to 71 °C. The 11TW1-3 toggle switch has a solder termination style. The maximum AC voltage rating is 125 VAC and the maximum DC voltage rating is 30 VDC. This product is 14.7 mm long, 48 mm tall and 13.7 mm deep.

Allied Electronics:
Toggle Switch; Miniature; 2 Positions

Chip1Stop:
Switch Toggle ON ON SPDT Round Lever Solder 5A 125VAC 30VDC Panel Mount with Threads

Verical:
Switch Toggle ON ON SPDT Round Lever Solder 5A 125VAC 30VDC Panel Mount with Threads

Newark:
# HONEYWELL  11TW1-3  Toggle Switch, SPDT, Non Illuminated, On-On, TW Series, 5 A

MASTER:
MICRO SWITCH™ Miniature Toggle Switches: TW Series, Single Pole Double Throw SPDT 2 Position On - On, Solder Terminals, 15/32 Inch Bushing, Standard Lever, Military Part Number MS27718-23-1

Online Components:
MICRO SWITCH™ Toggle Switches: TL Series, Single Pole Double Throw SPDT 2 Position On - On, Solder Turret Terminals, Locking ...

Electro Sonic:
MICRO SWITCH™ Miniature Toggle Switches: TW Series, Single Pole Double Throw SPDT 2 Position On - On, Solder Terminals, 15/32 ...
