19705-4001概述

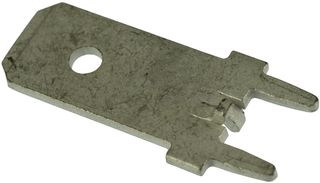

电路板接线端子, 6.35mm x 0.81mm, 0.25" x 0.032", 黄铜, 1.7 mm, 锡, 19705 Series

Cost-effective, quick-disconnect PCB terminal tabs enable easy connection of wires to PCBs and are ideal for consumer appliances and HVAC applications.

Features:

* Industry-standard widths - Provides drop-in replacement compatibility to competitor products

* Available with tab support - Stabilizes the tab on board to keep tab straight during soldering

* Tin over nickel plating - Improves solderability during wave soldering

* Multiple tab heights or lengths available - Provides maximum design flexibility

offers a large selection of standard PCB-mountable quick-disconnect terminal tabs, offering increased mounting reliability and terminal strength. Available in reels or loose piece, these tabs are easily inserted into PCBs using widely available, industry-standard bench-type, and fully-automated XY insertion tooling. Products are available in both vertical and right-angle mounting configurations, are manufactured to NEMA specifications, and are UL and CSA recognized.

19705-4001中文资料参数规格
技术参数

极性 Male

触点电镀 Tin

灼热丝测试标准 Non-Compliant

无卤素状态 Low Halogen

方向 Straight

封装参数

安装方式 Surface Mount

封装 -

外形尺寸

长度 14.22 mm

封装 -

物理参数

触点材质 Tin

材质 Brass

绝缘材质 Non-Insulated

其他

产品生命周期 Active

包装方式 Bulk

制造应用 消费电子产品, 车用

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

ELV标准 Compliant

REACH SVHC标准 No SVHC

海关信息

ECCN代码 EAR99

数据手册

在线购买19705-4001
型号: 19705-4001
制造商: Molex 莫仕
描述:电路板接线端子, 6.35mm x 0.81mm, 0.25" x 0.032", 黄铜, 1.7 mm, 锡, 19705 Series
