16SEPC270M+TSS

电容, 16VDC, 270UF, 11MΩ, 8X12MM, T&A; 盒

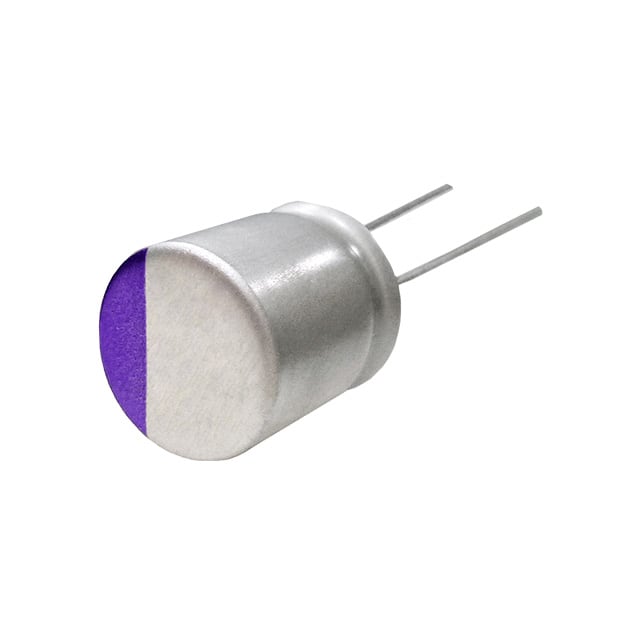

The polymer capacitor, made from pure aluminum and developed by , will handle all of your circuit"s voltage control needs. Users like its long lead wire form. It can withstand a voltage of 16 VDC. This part has a lead diameter of 0.6 mm. It has 2 terminals. This product"s terminal pitch is 3.5 mm. The 16SEPC270M+TSS conductive polymer aluminum solid capacitor has a radial termination style. This conductive polymer aluminum solid capacitor has an operating temperature range of -55 °C to 105 °C. It has a tolerance of 20%. Its leakage current is 864@2Min μA. This product is 12Max mm tall with a diameter of 8 mm.
