160LLE22MEFC10X12.5

RUBYCON  160LLE22MEFC10X12.5  铝电解电容, 微型, LLE系列, 22 µF, ± 20%, 160 V, 10 mm, 径向引线

22 µF 160 V 铝电解器 径向，Can - 105°C 时为 15000 小时

得捷:
CAP ALUM 22UF 20% 160V RADIAL

立创商城:
22uF ±20% 160V

e络盟:
铝电解电容, 微型, 22 µF, 160 V, LLE系列, ± 20%, 径向引线, 10 mm

艾睿:

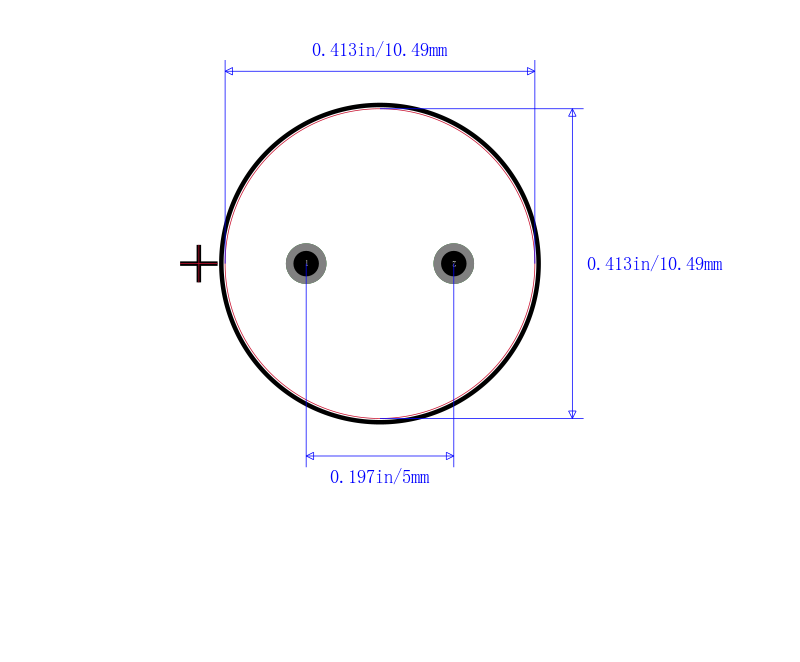

This electrolytic 160LLE22MEFC10X12.5 aluminum capacitor from Rubycon combines low cost, high capacitance and high energy density all in one tiny component. It can withstand a voltage of 160 VDC. This aluminum electrolytic capacitor has a maximum operating temperature of 105 °C. The 160LLE22MEFC10X12.5 aluminum electrolytic capacitor has a radial termination style. This part has a lead diameter of 0.6 mm and a pitch of 5 mm. This product is 12.5 mm tall with a diameter of 10 mm. Its capacitance value is 22uF. It has a tolerance of 20%. Its leakage current is 240.8@1Min|95.4@5Min μA.

安富利:
Cap Aluminum 22uF 160V 20% 10 X 12.5mm Radial Aluminum Cylindrical Can 5mm 121mA 15000 hr 105°C Bulk

Newark:
# RUBYCON  160LLE22MEFC10X12.5  Aluminium Electrolytic Capacitor, LLE Series, 22 - F, - 20%, 160 V, 10 mm, Radial Leaded
