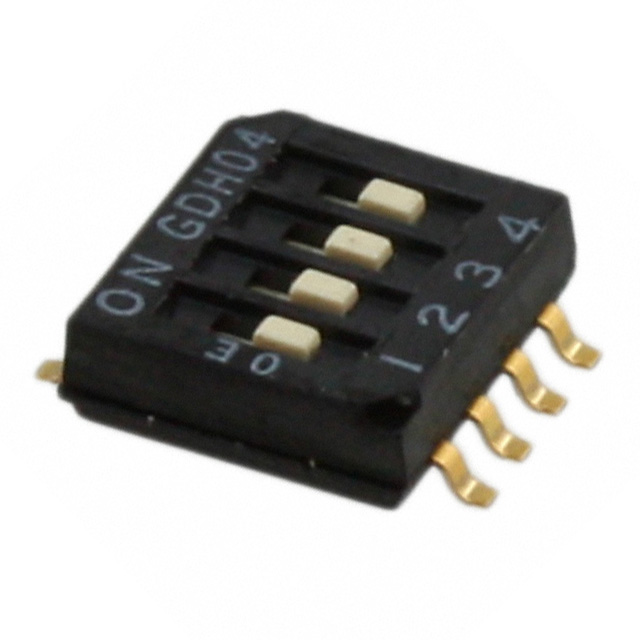

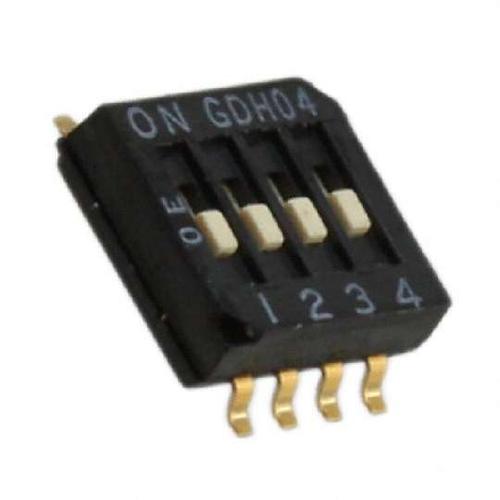

TE CONNECTIVITY 1571983-5 DIP / SIP开关, SPST, SMD, 4 电路, DIP密封, 24 VDC
半间距摇臂
金擦触点系统
触点电阻:100mΩ
绝缘电阻:100 MΩ @ 250V 直流
薄型,胶袋密封
机械寿命:1000 次循环
### 注
以 STR04 结尾的部件号为胶带和卷装
欧时:
DIP switch,SMT,SPST,4 ps,recessed rocker
立创商城:
1571983-5
e络盟:
DIP / SIP开关, 4 电路, 滑动式, SMD, SPST, 24 VDC, 25 mA
艾睿:
Easily customize your printed circuit with the use of the 1571983-5 dual in-line package switch, designed from TE Connectivity. This device has a maximum current rating of 0.025 A @ 24VDC. It has a SPST configuration. This DIP switch has an operating temperature range of -30 °C to 85 °C. The 1571983-5 DIP switch has a gull wing termination style. The maximum DC voltage rating is 24 VDC. This product is 6.2 mm long, 2.3 mm tall and 8.13 mm deep. This product&s;s terminal pitch is 1.27 mm.
安富利:
Switch DIP ON OFF SPST 4 Recessed Slide 0.025A 24VDC Gull Wing 1.27mm SMD T/R
Chip1Stop:
Switch DIP ON OFF SPST 4 Recessed Rocker 0.025A 24VDC Gull Wing 1.27mm SMD T/R
Verical:
Switch DIP OFF ON SPST 4 Recessed Rocker 0.025A 24VDC Gull Wing 1.27mm SMD T/R
Newark:
# TE CONNECTIVITY 1571983-5 DIP Switch, SPST, DIP Sealed, SMD, 25 mA, 24 VDC
MASTER:
DIP / SIP Switch - 4 Circuits - Slide - SMD - SPST - 24 VDC - 25 mA.
Powell:
DIP, Rotary DIP, SIP Switches and DIP Shunts - Standard
Online Components:
GDH04STR04=DIP SWITCH
Electro Sonic:
DIP / SIP Switch - 4 Circuits - Slide - SMD - SPST - 24 VDC - 25 mA.
触点电镀 Gold, Gold over Nickel
额定电压DC 24 V
接触器类型 Rocker
额定电流 25 mA
触点类型 SPST
电路数 4
易燃性等级 UL 94 V-0
针脚数 4
触点额定电流 25mA @24VDC
额定电流Max 0.025A @24VDC
工作温度Max 85 ℃
工作温度Min -30 ℃
额定电压 24 VDC
额定电压DC Max 24 V
接触电阻Max 100 mΩ
安装方式 Surface Mount
封装 DIP
长度 6.2 mm
宽度 8.13 mm
高度 2.3 mm
封装 DIP
外壳颜色 Black
触点材质 Copper Alloy
工作温度 -30℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 Industrial, 工业
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ELV标准 Compliant
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
HTS代码 8536509065
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
1571983-5 TE Connectivity 泰科 | 当前型号 | 当前型号 |
1825140-1 泰科 | 完全替代 | 1571983-5和1825140-1的区别 |
GDH04STR04 泰科 | 完全替代 | 1571983-5和GDH04STR04的区别 |
1571983-6 泰科 | 完全替代 | 1571983-5和1571983-6的区别 |
