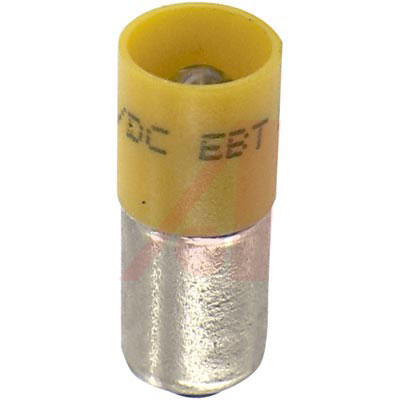

LED Replacement Lamp, Midget Groove / S5.7s, Yellow, T-1 3/4 5mm, 587nm, 280mcd
Extremely High Brightness with Low Current, Midget Groove Based LED with Custom Color
* Extremely high brightness with low current draw
* Long life typically 100K hours vs. 10K hours
* Low heat generation
* Available in five standard colors
* Custom colors available upon request
* Shock and vibration proof
Midget Groove based LED with custom color. Extremely high brightness with low current. T-1-3/4 package type. Height is 16 mm. Lamp life 100000 hours. Luminous intensity 280 mcd. Forward current rating is 7/14 V.
电源电压DC 28 V
额定电压DC 28 V
额定电流 14 mA
正向电压 28 V
波长 587 nm
发光强度 280 mcd
峰值波长 587 nm
正向电压Max 28 V
正向电流Max 14 mA
工作温度Max 60 ℃
工作温度Min -20 ℃
额定电压 24 VAC
电源电压 28 V
安装方式 Through Hole
封装 T-1-3
高度 16 mm
直径 6.10 mm
封装 T-1-3
颜色 Yellow
工作温度 -20℃ ~ 60℃
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2014/06/16
