10099113-101LF

AMPHENOL FCI  10099113-101LF  连接器, QSFP/QSFP+, 母

QSFP Components - FCI

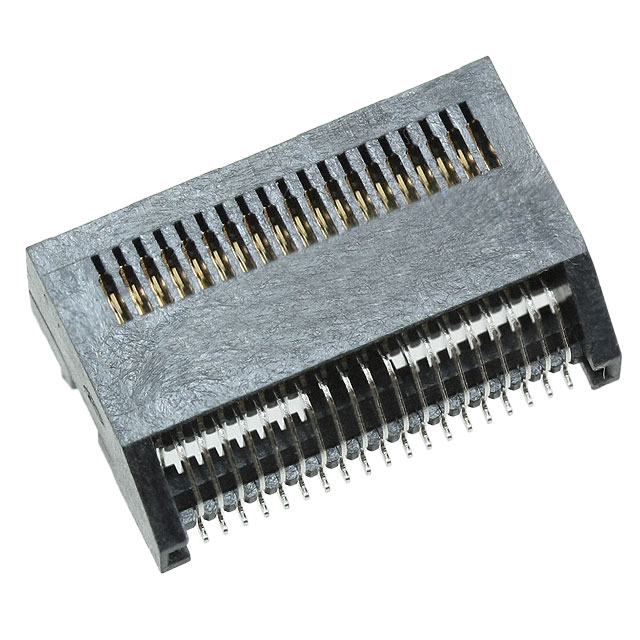

The FCI QSFP SMT terminated card edge connector has 38 positions with 0.8mm spaced contacts. The QSFP metal cage and EMI fingers are copper alloy with the cage being Nickel plated and the fingers Tin plated. The QSFP edge card connector and cage are designed to meet all signal integrity requirements and EMI requirements as defined by the SFF-8436 specification.

### 注

For associated accessories see stock number 721-1531 typical.

### QSFP Connectors and Cable Assemblies - FCI

These FCI’s QSFP Quad Small Form-factor Pluggable connector and cable assemblies are designed to meet the needs of a high density cabling interconnection system. This QSFP system is capable of delivering an aggregate data bandwidth of 40 Gb/s. The FCI system is fully compliant with existing industry standard specifications such as the QSFP MSA and IBTA InfiniBand Trade Association. The QSFP cables support the bandwidth transmission requirements as defined by IEEE 802.3ba 40 Gb/s and Infiniband QDR 4x10 Gb/s per channel specifications.
