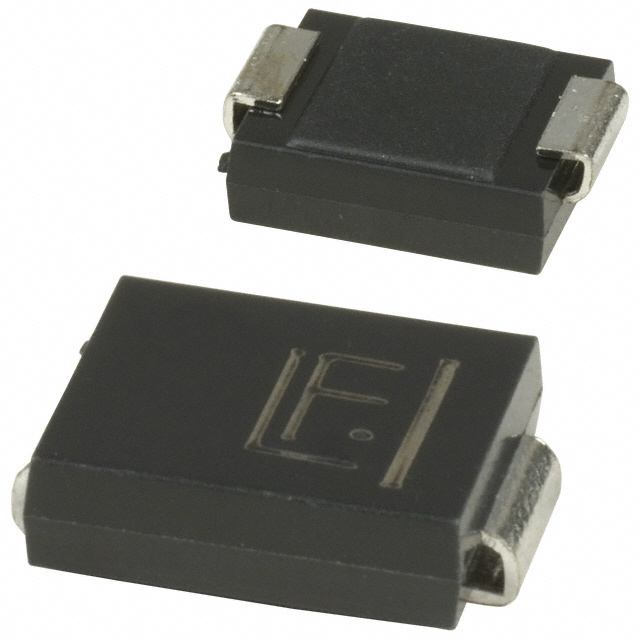

硅雪崩二极管 - 1500W表面贴装型瞬态电压抑制器 Silicon Avalanche Diodes - 1500W Surface Mount Transient Voltage Supressors
246V 夹子 6.2A Ipp TVS - 表面贴装型 DO-214AB（SMCJ）
得捷:
TVS DIODE 154VWM 246VC DO214AB
立创商城:
双向 Vrwm:154V 1.5kW
贸泽:
ESD Suppressors / TVS Diodes 1.5SMC180CA
艾睿:
Protect vulnerable electronic circuits against overvoltages by equipping your device with this 1.5SMC180CA TVS diode from Littelfuse. Its peak pulse power dissipation is 1500 W. This device&s;s maximum clamping voltage is 246 V and minimum breakdown voltage is 171 V. Its maximum leakage current is 1 μA. Its test current is 1 mA. This TVS diode has a minimum operating temperature of -55 °C and a maximum of 150 °C. Tape and reel packaging will encase the product during shipment, ensuring safe delivery and enabling quick mounting of components.
Chip1Stop:
Diode TVS Single Bi-Dir 154V 1.5KW 2-Pin DO-214AB T/R
额定电压DC 180 V
额定功率 1.50 kW
击穿电压 171 V
电路数 1
耗散功率 1.5 kW
钳位电压 246 V
测试电流 1 mA
脉冲峰值功率 1500 W
最小反向击穿电压 171 V
工作温度Max 150 ℃
工作温度Min -65 ℃
工作结温 -65℃ ~ 150℃
安装方式 Surface Mount
引脚数 2
封装 DO-214AB

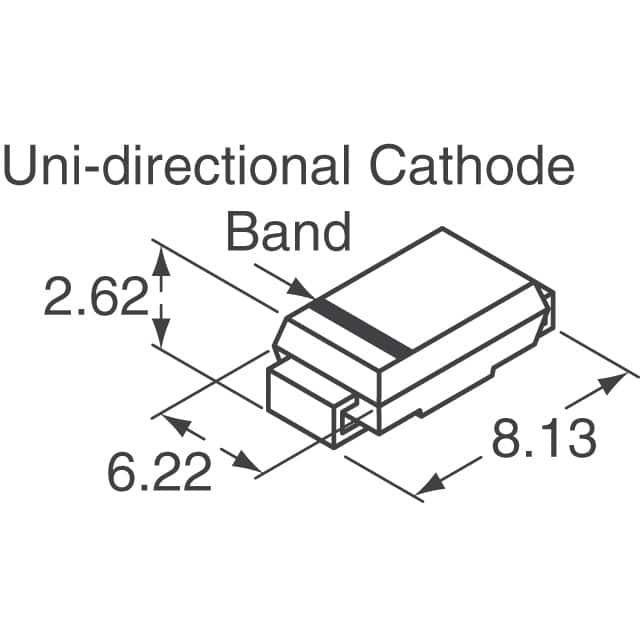

长度 8.13 mm
宽度 6.22 mm
高度 2.62 mm
封装 DO-214AB
工作温度 -55℃ ~ 150℃ TJ
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 通用
RoHS标准 RoHS Compliant
含铅标准 Lead Free
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
1.5SMC180CA Littelfuse 力特 | 当前型号 | 当前型号 |
1.5SMC180CA-E3/57T 威世 | 类似代替 | 1.5SMC180CA和1.5SMC180CA-E3/57T的区别 |
1.5SMCJ150C PANJIT Touch Screens | 功能相似 | 1.5SMC180CA和1.5SMCJ150C的区别 |
