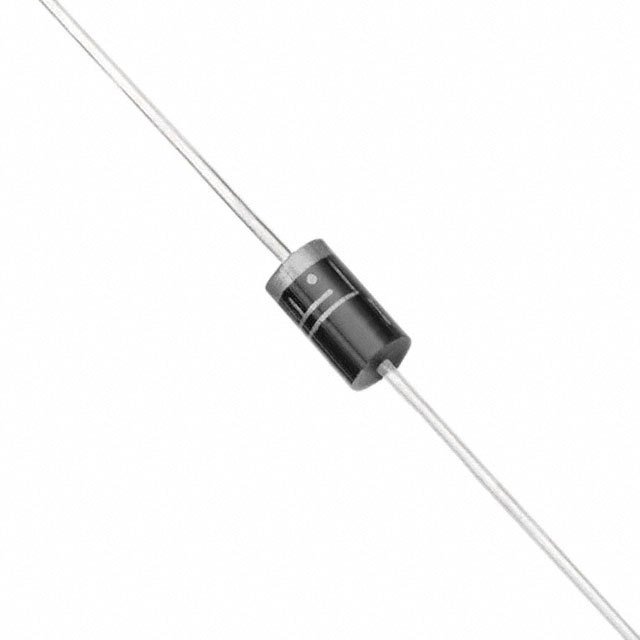

1.5KE600A

TVS二极管, 1.5KE Series, 单向, 512 V, 828 V, DO-201, 2 引脚

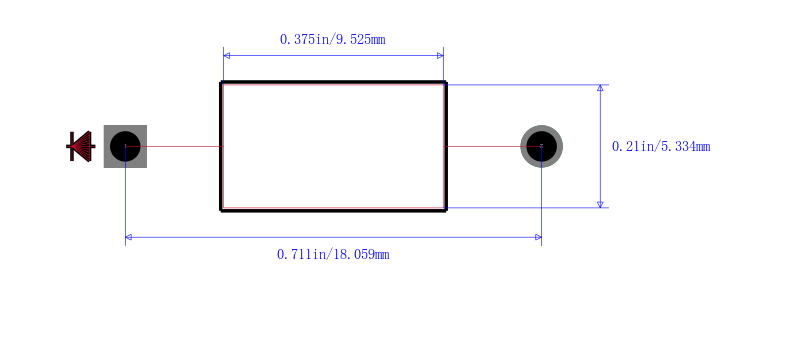

828V Clamp 1.8A Ipp Tvs Diode Through Hole DO-201

得捷:
TVS DIODE 512VWM 828VC DO201

立创商城:
单向 Vrwm:512V 1.5kW

贸泽:
ESD 抑制器/TVS 二极管 1.5KE TVS Diode Axial

e络盟:
TVS二极管, 1.5KE Series, 单向, 512 V, 828 V, DO-201, 2 引脚

艾睿:
Protect your electronic equipment from sudden or momentary overvoltage conditions with this 1.5KE600A TVS diode from Littelfuse. This device&s;s maximum clamping voltage is 828 V and minimum breakdown voltage is 570 V. Its maximum leakage current is 1 μA. Its peak pulse power dissipation is 1500 W. Its test current is 1 mA. This TVS diode has an operating temperature range of -55 °C to 175 °C. In order to ensure safe delivery and enable quick mounting of this component after delivery, it will be encased in tape and reel packaging during shipment.

TME:
Diode: transil; 1.5kW; 600V; 1.8A; unidirectional; ±5%; DO201
