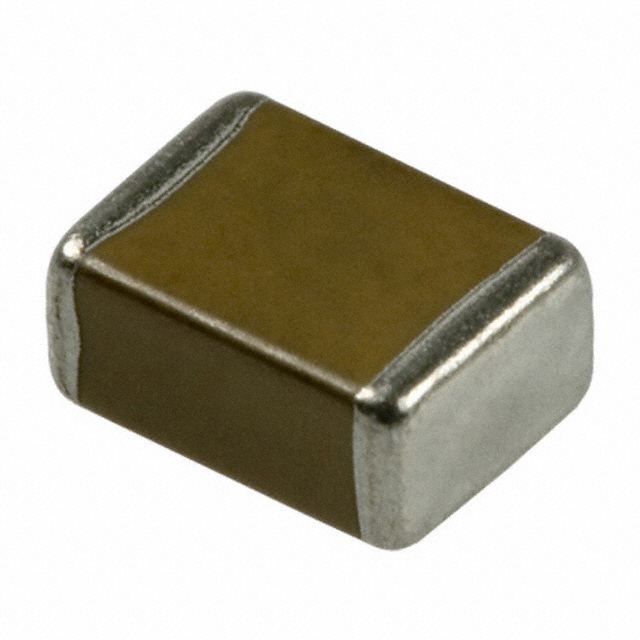

1812 3 kV 22 pF ±5% 容差 C0G NP0 表面贴装 多层陶瓷电容
±5% 3000V(3kV) 陶瓷器 C0G,NP0 1812(4532 公制)
得捷:
CAP CER 22PF 3KV C0G/NP0 1812
艾睿:
Available with a variety of capacitance values, voltage ratings, package sizes, and other parameters, this 1812HA220JAT1A multilayer ceramic capacitor from AVX can be used in multiple applications and for various purposes. It can withstand a voltage of 3000 VDC. This MLCC capacitor has a maximum operating temperature of 125 °C. This component will be shipped in tape and reel packaging for effective mounting and safe delivery. It has a tolerance of 5%. Its capacitance value is 22pF. This product is 4.5 mm long, 2.54Max mm tall and 3.2 mm deep.
安富利:
Cap Ceramic 22pF 3000V C0G 5% SMD 1812 125°C T/R
Verical:
Cap Ceramic 22pF 3000V C0G 5% Pad SMD 1812 125C Low ESR T/R
额定电压DC 3.00 kV
绝缘电阻 100 GΩ
电容 22 pF
容差 ±5 %
电介质特性 C0G/NP0
工作温度Max 125 ℃
工作温度Min -55 ℃
额定电压 3000 V
安装方式 Surface Mount
引脚数 2
封装公制 4532
封装 1812
长度 4.50 mm
宽度 0.126 in
高度 2.54 mm
封装公制 4532
封装 1812
材质 C0G/-55℃~+125℃
工作温度 -55℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
最小包装 1000
制造应用 通用
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
1812HA220JAT1A AVX 艾维克斯 | 当前型号 | 当前型号 |
1812Y3K00220JCT Syfer Technology | 类似代替 | 1812HA220JAT1A和1812Y3K00220JCT的区别 |
