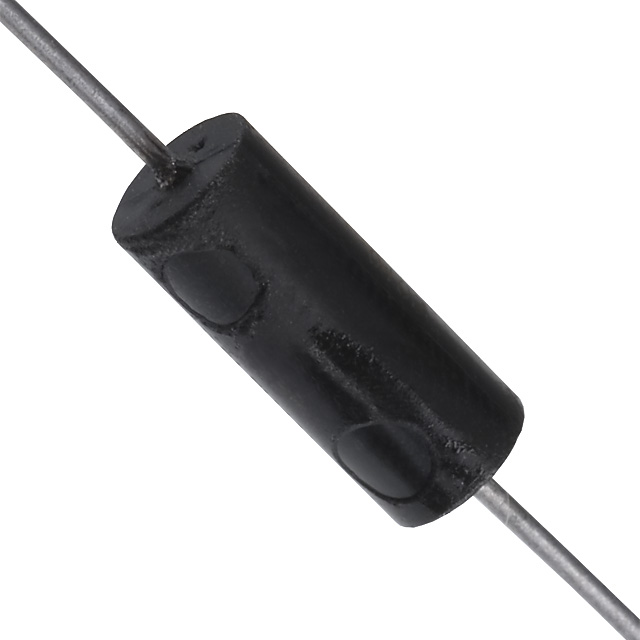

1641R-102K

Inductor; RF; Ind 1uH; Tol 10%; Cur 1090mA; Axial; DCR 0.07Ω; SRF 140MHz

**Operating Temperature Range:** –55°C to +105°C

**Current Rating at 90°C Ambient:** 15°C Rise

**Maximum Power Dissipation at 90°C:** 0.11 W

**Incremental Current: **Current level which causes a Max. of 5% change in inductance.

**Coupling:** 3% Max.

**Optional Tolerances:** 5% and 3% available

得捷:
FIXED IND 1UH 1.09A 70 MOHM TH

立创商城:
1uH ±10% 1.09A 70mΩ

Allied Electronics:
Inductor; RF; Ind 1uH; Tol 10%; Cur 1090mA; Axial; DCR 0.07 Ohms; SRF 140MHz

Chip1Stop:
Inductor RF Shielded/Molded Wirewound 1uH 10% 25MHz 44Q-Factor Iron 1.09A 70mOhm DCR AXL T/R
