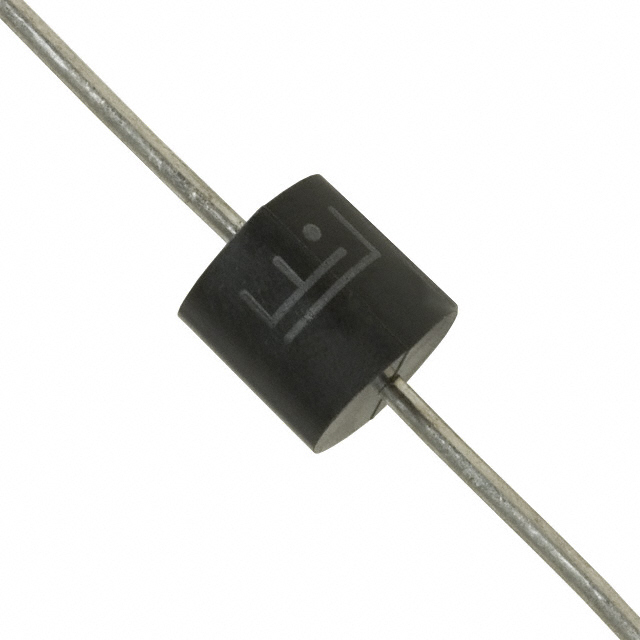

15KPA24CA

瞬态电压抑制二极管 Transient Voltage Suppression Diodes

40.7V Clamp 371A Ipp Tvs Diode Through Hole P600

得捷:
TVS DIODE 24VWM 40.7VC P600

立创商城:
双向 Vrwm:24V 15kW

贸泽:
ESD 抑制器/TVS 二极管 TVS AXIAL HI-POWER

艾睿:
Save yourself hassle by equipping your device with Littelfuse&s;s 15KPA24CA TVS diode which will react to sudden or momentary overvoltage conditions. Its maximum leakage current is 300 μA. This device&s;s maximum clamping voltage is 40.7 V and minimum breakdown voltage is 26.81 V. Its peak pulse power dissipation is 15000 W. Its test current is 5 mA. This TVS diode has an operating temperature range of -55 °C to 175 °C. Tape and reel packaging will encase this product during shipment, in order to ensure safe delivery and enable quick mounting of components.

Chip1Stop:
Diode TVS Single Bi-Dir 24V 15KW 2-Pin Case P-600 T/R

TME:
Diode: transil; 15kW; 28.1V; 371A; bidirectional; ±5%; P600
