Phoenix Contact COMBICON PT 5.0mm 印刷电路板端子块COMBICON 紧凑型印刷电路板螺钉端子块系列,属于 PT 1.5 和 PT 2.5 系列,带 5.0 mm 节距。PT 1.5 类型接受 0.2 至 2.5mm² 26-14awg 实心和柔性导线,最大电流/电压为 20A/250V PT 2.5 类型接受 0.5 至 4.0mm² 20-10awg 实心和柔性导线,最大电流/电压为 32A/250V 印刷电路板孔直径 1.3 mm 易燃性等级 UL 94V-0 ### Phoenix Contact COMBICON 5.0mm 印刷电路板端子块
** Contact COMBICON PT 5.0mm PCB Terminal Blocks**
A range of COMBICON Compact PCB Screw Terminal Blocks in the PT 1.5 & PT 2.5 Series with 5.0 mm pitch.
欧时:
Phoenix Contact COMBICON PT 5.0mm 印刷电路板端子块COMBICON 紧凑型印刷电路板螺钉端子块系列,属于 PT 1.5 和 PT 2.5 系列,带 5.0 mm 节距。PT 1.5 类型接受 0.2 至 2.5mm² 26-14awg 实心和柔性导线,最大电流/电压为 20A/250V PT 2.5 类型接受 0.5 至 4.0mm² 20-10awg 实心和柔性导线,最大电流/电压为 32A/250V 印刷电路板孔直径 1.3 mm 易燃性等级 UL 94V-0 ### Phoenix Contact COMBICON 5.0mm 印刷电路板端子块
得捷:
TERM BLK 4POS SIDE ENTRY 5MM PCB
艾睿:

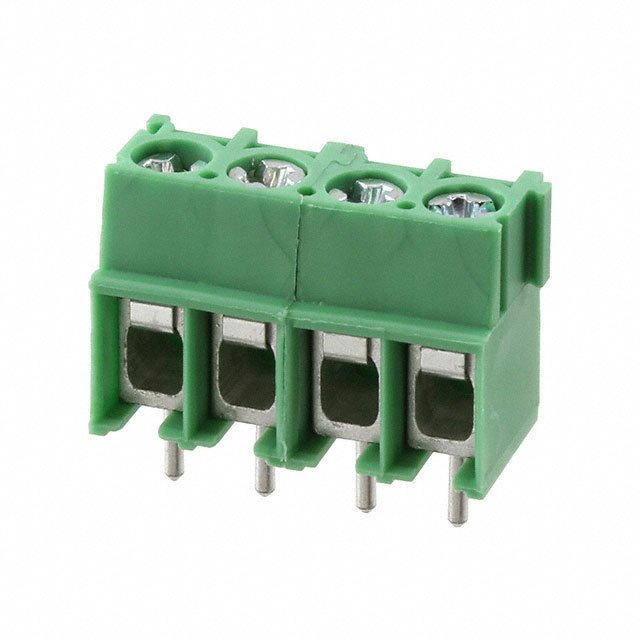

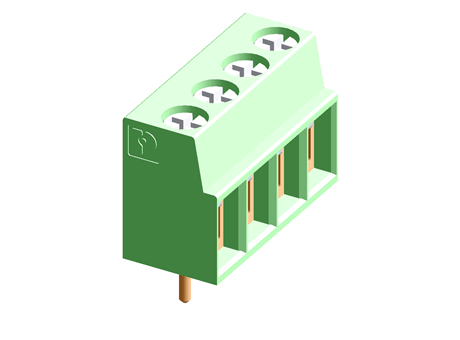

Connecting one or more circuits together, this 1935792 PCB terminal block from Phoenix Contact is a must-have! It has a straight body orientation. This is a 1-row connector. Its pitch is 5 mm. It has a maximum voltage rating of 250 V. 1935792 is housed in polyamide. This device has a maximum current rating of 32 A. Its wire is 10-20 AWG. It uses the solder termination method. This product is 20 mm long, 13.5 mm tall and 9 mm deep.
Allied Electronics:
Conn; Term Blk; PCB; Screw; 4; 5 mm; Front; 20-10 AWG; Green; 32 A; 250 V
Verical:
Conn PC Terminal Block 4 POS 5mm Solder ST Thru-Hole 32A
MASTER:
PCB terminal block - nominal current: 32 A - rated voltage III/2: 400 V - nominal cross section: 2.5 mm² - pitch: 5 mm - number of positions: 4 - connection method: Screw connection with wire protector - mounting: Wave soldering - conductor/PCB connecti
Online Components:
Conn PC Terminal Block 4 POS 5mm Solder ST Thru-Hole 32A
Electro Sonic:
PCB terminal block - nominal current: 32 A - rated voltage III/2: 400 V - nominal cross section: 2.5 mm² ...
触点数 4
线规 12AWG ~ 20AWG
额定电流 32 A
排数 1
电路数 4
针脚数 4
额定电流Max 32 A
额定电压Max 250 V
额定电压 250 V
工作电压Max 250 V
安装方式 Through Hole

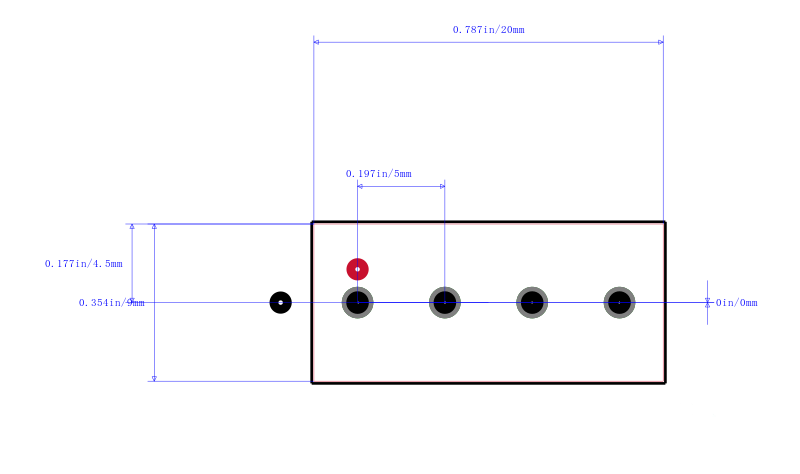

引脚间距 5 mm
长度 20 mm
宽度 9 mm
高度 13.5 mm
引脚间距 5 mm
外壳颜色 Green
颜色 Green
触点材质 Copper Alloy
材质 Nylon
产品生命周期 Active
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
HTS代码 8536904000
