1935213

间距5mm 7位 17.5A 400V 可拼接 螺钉式 直插 可用两位1935161与三位（1935174）拼接

接线板 - 线至板

得捷:

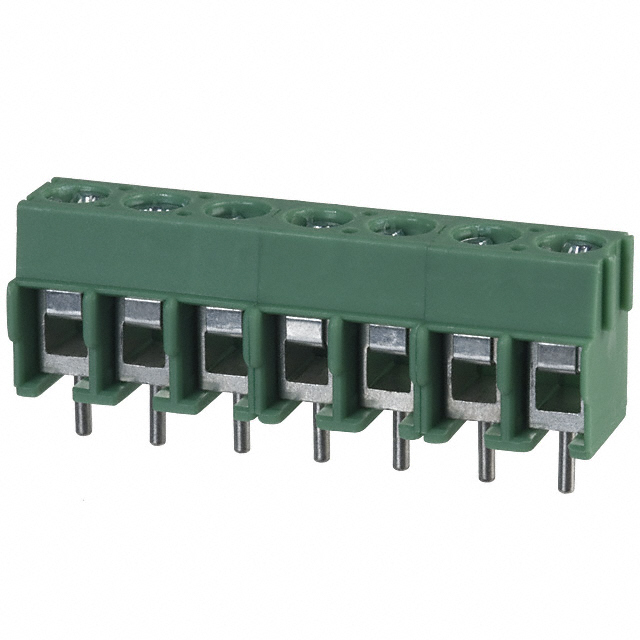

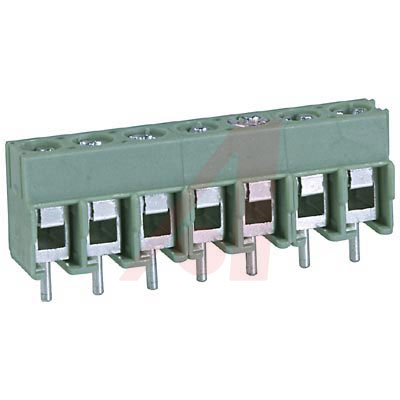

TERM BLK 7POS SIDE ENTRY 5MM PCB

艾睿:
Phoenix Contact&s;s 1935213 PCB terminal block will ensure strong connections between circuits. It has a maximum voltage rating of 400 V. This is a 1-row connector. It has a straight body orientation. Its pitch is 5 mm. 1935213 is housed in polyamide. This device has a maximum current rating of 17.5 A. Its wire is 14-26 AWG. It uses the solder termination method. This product is 35 mm long, 11.4 mm tall and 9 mm deep.

Allied Electronics:
Conn; Term Blk; PCB; Screw; 7; 5 mm; Front; 26-14 AWG; 17.5 A; 250 V; Solder

Verical:
Conn PC Terminal Block 7 POS 5mm Solder ST Thru-Hole 17.5A

MASTER:
PCB terminal block - nominal current: 17.5 A - rated voltage III/2: 400 V - nominal cross section: 1.5 mm² - pitch: 5 mm - number of positions: 7 - connection method: Screw connection with wire protector - mounting: Wave soldering - conductor/PCB connec

Online Components:
Conn PC Terminal Block 7 POS 5mm Solder ST Thru-Hole 17.5A

Electro Sonic:
PCB terminal block - nominal current: 17.5 A - rated voltage III/2: 400 V - nominal cross section: 1.5 mm² ...
