1751099

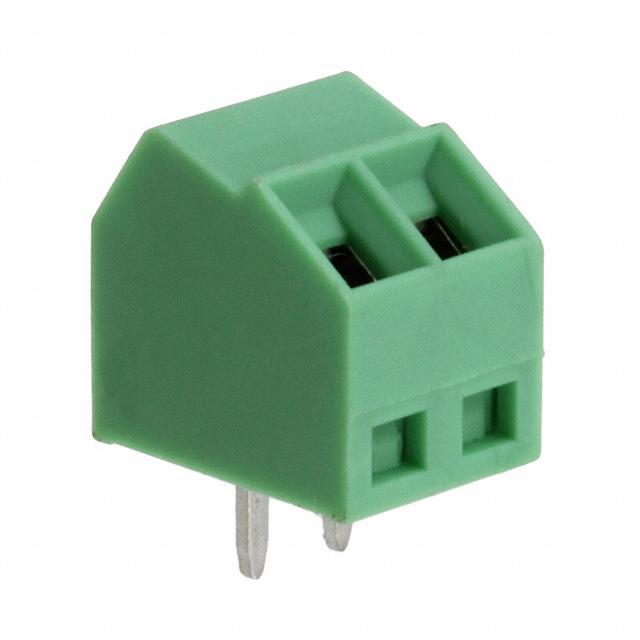

Phoenix Contact COMBICON SMKDS 系列 3.5mm 节距 2 路 绿色 印刷电路板接线端子块 1751099, 通孔

2 接线板 - 线至板 55°（125°）角度，带板 0.138"（3.50mm） 通孔

得捷:
TERM BLOCK 2POS 55DEG 3.5MM PCB

艾睿:
Join your electrical circuits and ensure strong connections with this pc terminal block 1751099 PCB terminal block from Phoenix Contact. Its pitch is 3.5 mm. This is a 1-row connector. It has a maximum voltage rating of 160 V. 1751099 is housed in polyamide. This device has a maximum current rating of 12 A. It uses the solder termination method. This product is 7.5 mm long, 9.5 mm tall and 10 mm deep. Its wire is 16-26 AWG.

Verical:
Conn PC Terminal Block 2 POS 3.5mm Solder Thru-Hole 10A

MASTER:
PCB terminal block - nominal current: 10 A - rated voltage III/2: 200 V - nominal cross section: 1 mm² - pitch: 3.5 mm - number of positions: 2 - connection method: Screw connection with tension sleeve - mounting: Wave soldering - conductor/PCB connecti

Online Components:
Conn PC Terminal Block 2 POS 3.5mm Solder Thru-Hole 12A

Electro Sonic:
PCB terminal block - nominal current: 10 A - rated voltage III/2: 200 V - nominal cross section: 1 mm² ...
