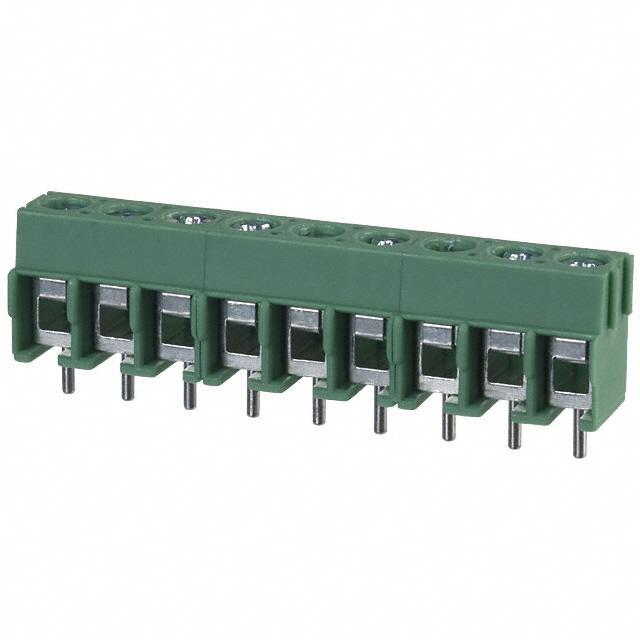

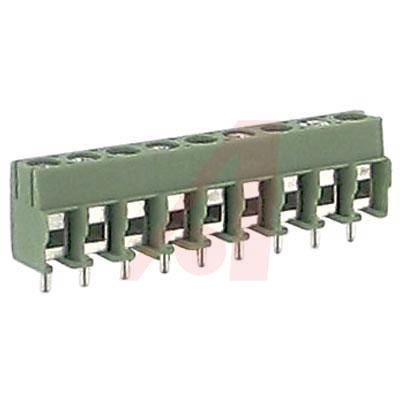

1935239

间距5mm 9位 17.5A 400V 可拼接 螺钉式 直插 可用两位1935161与三位（1935174）拼接

接线板 - 线至板

得捷:
TERM BLK 9POS SIDE ENTRY 5MM PCB

贸泽:
固定接线端子 PT 1.5/9-5.0-H

艾睿:
Know that you will have strong connections between circuits when you use Phoenix Contact&s;s 1935239 PCB terminal block. It has a maximum voltage rating of 250 V. It has a straight body orientation. Its pitch is 5 mm. This is a 1-row connector. This device has a maximum current rating of 16 A. 1935239 is housed in polyamide. This product is 45 mm long, 11.4 mm tall and 9 mm deep. It uses the solder termination method. Its wire is 14-26 AWG.

Allied Electronics:
Conn; Term Blk; PCB; Screw; 9; 5 mm; Front; 26-14 AWG; 17.5 A; 250 V; Solder

Verical:
Conn Terminal Block 9 POS 5mm Solder ST Thru-Hole 17.5A

MASTER:
PCB terminal block - nominal current: 17.5 A - rated voltage III/2: 400 V - nominal cross section: 1.5 mm² - pitch: 5 mm - number of positions: 9 - connection method: Screw connection with wire protector - mounting: Wave soldering - conductor/PCB connec

Online Components:
Conn Terminal Block 9 POS 5mm Solder ST Thru-Hole 16A

Electro Sonic:
PCB terminal block - nominal current: 17.5 A - rated voltage III/2: 400 V - nominal cross section: 1.5 mm² ...
